Product Details:
Payment & Shipping Terms:
|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
|---|---|---|---|
| Core Components: | PVDF Hollow Fiber | Place Of Origin: | Beijing, China |
| Brand Name: | SINOMEMB | Warranty: | 1 Year |
| Productivity: | 500L/Hour | Weight (kg): | 60 Kg |

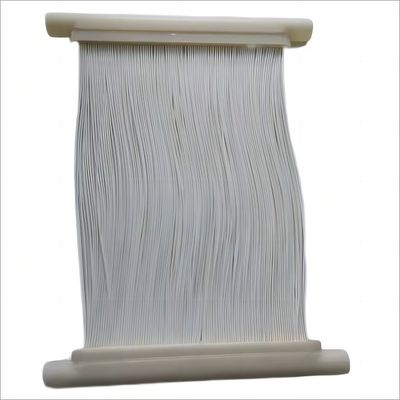

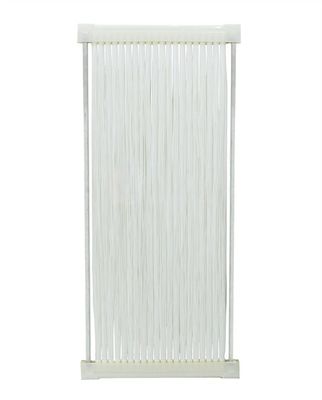

| Product Name: | MBR Membrane | Application: | Water Purification |
| Type: | Water Treatment System | Nominal Pore Size: | 0.10um |
| Usage: | Industrial | Material: | PVDF PES Hollow Fiber |
| Backwash Flux: | 30-50 LMH | Filtering Type: | Flat Sheet Membrane |
| Size: | Different As Each Model, 2000*535*46 | Plate Material: | ABS |
| Condition: | Used | Showroom Location: | China |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Industry | Weight: | According To Your Order |
Name | Description |
Material | Hydrophilic PVDF |
Tensile Strength | >300N |
Peel Strength | >0.4MPa |
Size | 2.6/1.8 mm |
Micron rating | 0.1-0.3um |
Porosity | 60-80% |
Flow rating ( pure water) | 1000- 2000L/m2.h.bar |
Operating pressure | 0.01-0.03 MPa |
Temp. | 5-50C |
PH | 2- 12 |
Life time | 5 years |

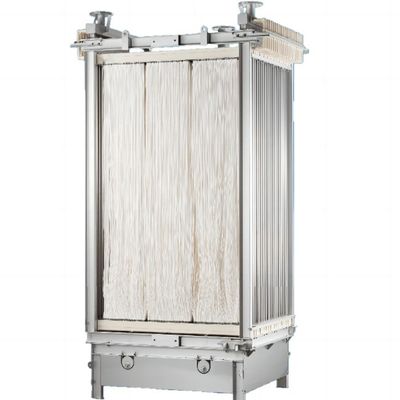

Model | MBR-PVDF-4.5 | MBR-PVDF-10 | MBR-PVDF-16 | ||
Module length | 750MM | 980MM | 1500MM | ||
Module width | 530MM | 650MM | 850MM | ||
Outlet diameter | 25MM | 32MM | 40MM | ||
Module membrane area | 4.5M² | 10M² | 16 M² | ||
Interception pore diameter | 0.1micron | 0.1micron | 0.1micron | ||
Turbidity of water output | ＜1NTU | ＜1NTU | ＜1NTU | ||
Tolerance range of temperature | 5-45℃ | 5-45℃ | 5-45℃ | ||
Tolerance range of PH value | 2-12 | 2-12 | 2-12 | ||
Flow of producing water | 1-1.5 M³/D | 2.4-6 M³/D | 3.5-9 M³/D | ||
Maxtrans membrane pressure(TMP) | -0.05MPA | -0.05MPA | -0.05MPA | ||
Type of water output | Negative pressure suction | ||||
Chemical cleaning agents | Citric acid / sodium hydroxide / sodium hypochlorite | ||||
