High Efficiency Hollow Fiber Ultrafiltration Membrane 0.03μM Pore UF Membrane

Large Image : High Efficiency Hollow Fiber Ultrafiltration Membrane 0.03μM Pore UF Membrane

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Model Number:	SNU-HO-2-860

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

High Efficiency Hollow Fiber Ultrafiltration Membrane 0.03μM Pore UF Membrane

Description

Highlight:

High Efficiency Hollow Fiber Ultrafiltration Membrane

0.03μM Pore Hollow Fiber Ultrafiltration Membrane

0.03μM Pore UF Membrane

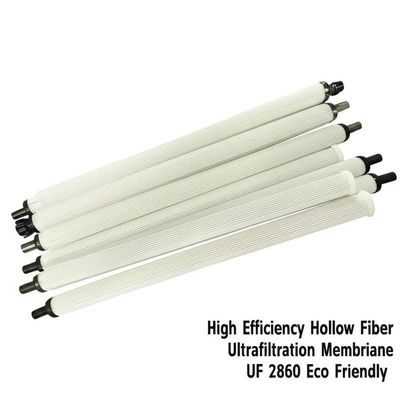

High Efficiency Hollow Fiber Ultrafiltration Membrane UF 2860 Eco Friendly

The core SINOMEMB® series SNU-HO-2-860 hollow fiber UF membrane element is designed for systems with a capacity greater than 50m³/hr (220 gpm). Compared with longer membrane modules, the 60-inch configuration provides higher separation efficiency and adapts to a wider range of influent water quality.

Product Specifications

Parameter	HM2860	HM2880
Membrane Area (㎡)	51	77
Material	Polyvinylidene fluoride (PVDF)	Polyvinylidene fluoride (PVDF)
Membrane Pore Size	0.03μm	0.03μm
Hollow Fiber Membrane Inner/Outer Diameter	0.7/1.3mm	0.7/1.3mm
Membrane Shell Material	UPVC	UPVC
Fiber Potting Material	Epoxy Resin	Epoxy Resin
Filtration Efficiency (>2μm)	100%	100%
Effluent Turbidity	≤0.2NTU	≤0.2NTU
Effluent SDI	≤3.0	≤3.0
Service Life	3-5 years (depends on feed water quality)	3-5 years (depends on feed water quality)
Filtration Method	Outside-in	Outside-in
Module Maximum Inlet Pressure	≤0.3MPa	≤0.3MPa
Recommended Operating Pressure	≤0.15MPa	≤0.15MPa
Working Temperature	5-45℃	5-45℃
PH Range During Use	2-11	2-11
Expected Influent Suspended Solids	≤150μm	≤150μm
Influent Turbidity	≤50NTU (max: 300NTU)	≤50NTU (max: 300NTU)
Influent Oil Content	≤2mg/L	≤2mg/L
Maximum Residual Chlorine	200mg/L (instantaneous; residual Cl ≤500mg/L)	200mg/L (instantaneous; residual Cl ≤500mg/L)
Maximum Flow Rate	40-80L/m²*h	40-80L/m²*h
Operating Mode	Direct filtration or maintenance filtration	Direct filtration or maintenance filtration
