Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision

Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision
Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision

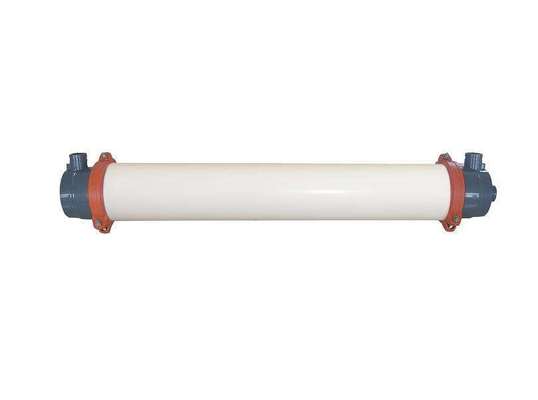

Large Image :  Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision

Product Details:
Place of Origin: China
Brand Name: SINOMEMB
Certification: NSF
Model Number: SN U-HI-1-660
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Standard export packaging
Contact Now

Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision

Description
Core Components: Uf Membrane Product Name: Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size: Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm Usage: Water Treatment, Seawater Ionizer Desalination, Liquid Filter, Remove Bacterias, Purification
Module: Inside-out Nominal Pore Size: 0.1 μm
Membrane Structure: Hollow Fiber Membrane Material: Polyethersulfone (PES)
Surface Area: 10-100 M2 Water Flux: 50-80lmh
Highlight:

Water Treatment Hollow Fiber Ultrafiltration Membrane

,

0.01μM Hollow Fiber Ultrafiltration Membrane

,

0.01μM UF Membrane

High-Performance SINOMEMB® UF Membrane Module SNU-HI-1-660 for Water Treatment Applications
SINOMEMB® UF Membrane Module SNU-HI-1-660 Type
The core SINOMEMB® series SNU-HI-1-660 hollow fiber UF membrane element is ideal for systems with a capacity of 50 m³/hr (220 gpm) and below. The 60-inch length module provides effective treatment for various feedwaters. With a compact 6-inch diameter design, it's perfect for space-limited installations, enabling economical membrane system designs. Suitable for surface water, well water, seawater, industrial wastewater, and sewage treatment applications.
Membrane Element Specifications
Membrane Element Model Effective Membrane Area ft²(m²) Effective Volume G(L) Weight Empty/Full of Water (kg)
SNU-HI-1-660 355(33) 4.2(16) 25/41
Inlet Size: DN50
Water Outlet Size: DN50
Concentrated Water Outlet Size: DN32
Membrane Polymer: PES
Membrane Inner Diameter/Outer Diameter (mm): 1.0/1.6
Filtration Precision (μm): 0.01
Shell Material: U-PVC
Sealant Material: Epoxy Resin
Membrane Element Operating Parameters
Parameter Value
Filtration Flux (25℃) L/㎡*hr 50-80
Flow Range m³/hr 1.65-2.64
Maximum Influent Turbidity (NTU) ≤50
Maximum Resistance to Residual Chlorine (NaCLO) (ppm) Continuous: 50; Momentary: 500
Maximum Anti-Suspended Solid Capacity (ppm) ≤50
Maximum Influent Particle Size (μm) 100
Working Temperature (℃) 1-40
pH Range 1-13
Maximum Water Production (L/m³*h) 120
Maximum Inlet Pressure (Mpa) 0.625
Maximum Transmembrane Pressure Difference (Mpa) 0.21
Maximum Backwash Pressure (Mpa) 0.25
General Backwash Cycle (min) 15-60
General Backwash Time (sec) 30-60
General Backwash Flow Rate (L/m³*h) 100-360
General Chemical Enhanced Backwash Cycle (day) 1-15
General Chemical Backwashing Time (min) 1-15
General Chemical Cleaning Cycle (day) 30-180
General Chemical Cleaning Time (min) 90-480
General Chemical Cleaning Chemicals NaClO or H2O2 500ppm, NaOH (PH≤13), HCl (PH≥1)
How to Run/Operate Inside-out / Full flow or cross flow filtration
Expected Water Production SDI ≤2.5
Expected Product Water Turbidity NTU ≤0.1
Bacteria Removal Rate (log) >6
E. coli Removal Rate (log) >6
Service Life ≥3 years under standard conditions
UF Membrane Element Size
Water Treatment Hollow Fiber Ultrafiltration Membrane 0.01μM UF Membrane High Precision 0
Dimension Value (mm) Value (in)
L 1860mm 73.2in
L1 1500mm 59.1in
L2 1610mm 63.4in
L3 1710mm 67.3in
L4 125mm 4.9in
Diameter Φ 165mm 6.5in
Key Features
  • Robust Membrane: Manufactured using patented c-TIPS technology for superior chemical resistance, mechanical strength, and extended lifespan.
  • Permanently Hydrophilic Membrane: Maintains steady operation flux through proprietary hydrophilic technology.
  • Oxidation-Inert Membrane: Can be thoroughly cleaned with strong oxidants due to PVDF polymer's chemical inertness.
  • Air Lift Recirculation: Patented technology reduces membrane fouling through efficient water recirculation.
  • Soft Potting: Protects capillary roots with a soft potting material layer for enhanced durability.
  • Low Operation Pressure: Designed to operate effectively at pressures as low as 0.02MPa (3.0 psi).
Applications
  • Advanced municipal water treatment and drinking water treatment
  • Advanced sewage treatment and reuse
  • Seawater desalination pretreatment
  • Conventional surface water/groundwater treatment
  • Industrial wastewater treatment and recycling
  • RO and NF system pretreatment
