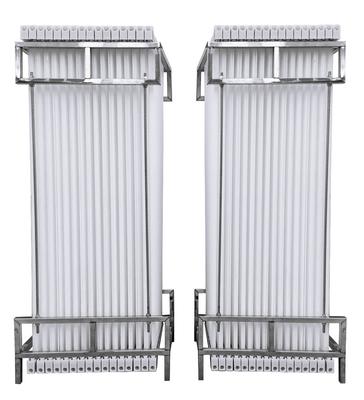

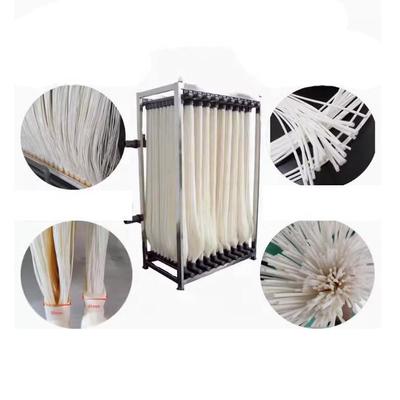

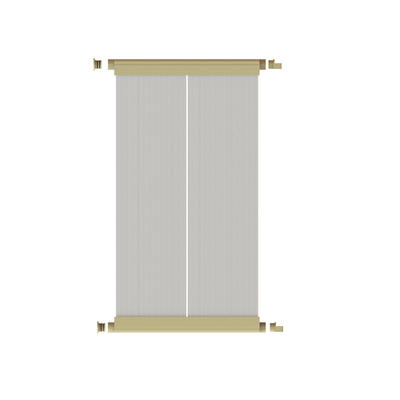

High Flux Anti-Fouling MBR Membrane for Waste Water Treatment with PVDF Material

Name: High Flux Anti-Fouling MBR Membrane for Waste Water Treatment with PVDF Material
Brand: Sinomemb Environment Technology (beijing) Co.,
SKU: SNU-HO-2-Z225L
Price: 73.11 USD
Availability: InStock

All Products

MBR Membrane
(47)

Residential RO Membrane
(32)

Industrial RO Membrane
(12)

Ultrafiltration Membrane
(16)

Seawater RO Membrane
(15)

RO Membrane Sheet
(3)

Brackish Water Membrane
(4)

Low Pressure Membrane
(8)

Fouling Resistant Membrane
(12)

Certification

I'm Online Chat Now

High Flux Anti-Fouling MBR Membrane for Waste Water Treatment with PVDF Material

Large Image : High Flux Anti-Fouling MBR Membrane for Waste Water Treatment with PVDF Material

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-Z225L

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

High Flux Anti-Fouling MBR Membrane for Waste Water Treatment with PVDF Material

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.1 μm
Size:	225×1760mm	Membrane Material:	PVDF
Surface Area:	10-100 M2
Highlight:	High Flux MBR Membrane , Anti-Fouling Hollow Fiber Ultrafiltration Membrane , Waste Water Treatment PVDF Membrane

MBR Membrane for High-Performance Water Filtration Processes

MBR (Membrane Biological Reactor) is an advanced wastewater treatment system combining ultrafiltration technology with biological treatment. This integrated solution effectively removes organic pollutants while producing high-quality output water suitable for reuse.

MBR Principle

The system utilizes activated sludge microorganisms to absorb and break down organic pollutants. The UF membrane separates water from sludge, eliminating the need for secondary settling tanks while maintaining high biological concentration for efficient organic degradation.

Applications

Municipal sewage treatment
Industrial wastewater treatment (chemical, food processing, etc.)
Aquaculture plant wastewater
Waste penetration treatment
Pharmaceutical wastewater treatment and reuse

MBR Advantages

High quality output: Removes SS and colloids without additional treatment
Compact design: 60% smaller footprint than traditional systems
Cost-effective: Reduces aeration time and eliminates sterilization chemicals

Technical Specifications

PP Material MBR Membrane

Model	MBR-PP-8	MBR-PP-16
Module length	810MM	1050MM
Module width	525MM	534MM
Membrane area	8M²	16M²
Pore diameter	0.1-0.2micron	0.1-0.2micron
Output turbidity	<1NTU	<1NTU
Water production	1-1.2M³/D	2-2.5M³/D

PVDF Material MBR Membrane

Model	MBR-PVDF-4.5	MBR-PVDF-10	MBR-PVDF-16
Module length	750MM	980MM	1500MM
Membrane area	4.5M²	10M²	16M²
Pore diameter	0.1micron	0.1micron	0.1micron
Water production	1-1.5M³/D	2.4-6M³/D	3.5-9M³/D

Reinforced PVDF Membrane Features

High pressure resistance for long service life
Scratch-resistant surface for easier cleaning
3-5x greater flux than PP membranes
Meets Class A discharge standards (GB18918-2002)
2-3x longer lifespan than PP materials

UF Membrane Specifications

Model	Membrane Material	Operation Mode	Element Size (mm)	Membrane Area (㎡)	Pore Size (μm)
SN U-HO-2-Z250	PVDF	Outside-in	Φ250*1715	75	0.03
SNU-HO-2-Z225L	PVDF	Outside-in	Φ225*1760	60	0.03

Custom models available based on order quantity.
