80m2 Surface Area Hollow Fiber Ultrafiltration Membrane 0.03μM Pore PVDF

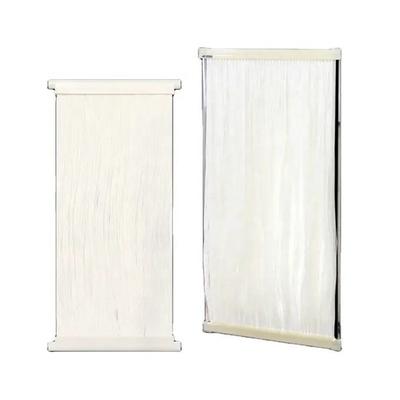

Large Image : 80m2 Surface Area Hollow Fiber Ultrafiltration Membrane 0.03μM Pore PVDF

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-SP80

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

80m2 Surface Area Hollow Fiber Ultrafiltration Membrane 0.03μM Pore PVDF

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification	Module:	Out-inside
Nominal Pore Size:	0.03μm	Size:	225×2360mm
Membrane Material:	PVDF	Surface Area:	80m2
Highlight:	0.03μm Pore Hollow Fiber Ultrafiltration Membrane , 80m2 Hollow Fiber Ultrafiltration Membrane , PVDF Hollow Fiber UF Membrane

UF System Maintenance Operation Guide for Ultrafiltration Membrane SNU-HO-2-SP80

UF Membrane Element Specifications

Membrane Fiber Specification and Parameters

Membrane material	Poly vinylidene fluoride (PVDF with Reinforced lining)
Membrane Pore size	0.034-0.1µm
Membrane fiber (ID/OD)	1.0/2.2mm, 0.8/1.9mm, 1.0/2.0mm
Filter method	Negative pressure suction mode
TPM(Max)	50Kpa
Designed Flux	10-40L/㎡*h
PH Range	2-11
Temperature Range	5-40℃
MLSS Range	4000-12000mg/L (min:3000mg/L, max:15000mg/L)

Standard Model Specifications

Model	MBR6	MBR10	MBR15	MBR-20	MBR-35
Element size	60076040mm	630100036mm	630150036mm	630200036mm	844219849mm
Connection	Ф25	Ф32	Ф32	Ф32	Ф32
Effective membrane area	6m²	10m²	15m²	20m²	35m²
Pore size	0.03~0.1µm
Material	PVDF (PET lining)
Water catchment mode	Both ends of the catchment
Filtration mode	Negative pressure suction

Operating Conditions

TMP	0.02~0.05Mpa
MAX Backwash pressure	0.1Mpa
Water temperature	10~45℃
Running PH tolerance range	5~9
Cleaning PH tolerance range	2~10
Aeration rate(Nm³)/ projected area	15:1~20:1

Performance Specifications

Produced water	Turbidity <0.3NTU SS≈0 SDI<4
Working life	≥ 5 years under normal usage

JHM-MBR Series Specifications

Model	JHM-MBR-15	JHM-MBR-30
Element size	1250mm*1300mm	1250mm*2000mm
Connection	Ф32	Ф32
Effective membrane area	15m²	30m²
Pore size	0.03~0.1µm	0.03~0.1µm
Material	PVDF membrane with PET support tube & ABS cartridge
Method of integration	Both ends of the catchment
Filtration mode	Negative pressure suction by submersed membrane

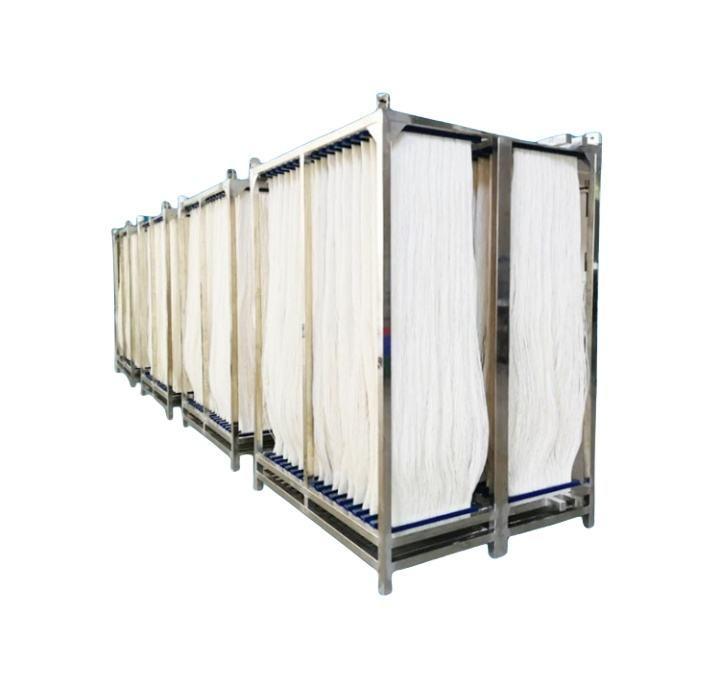

Large Capacity Model JHM-MBR20-32

Element quantity (piece)	20m²/pc *32pcs
Effective membrane area	640m²
Membrane module bracket dimension	169014202380mm
Dry/Wet weight (including water & sludge adhering)	600kgs/900kgs

SINOMEMB® UF Membrane Specifications

Model	Membrane material	Operation mode	Membrane element size (mm)	Effective membrane area (㎡)	Nominal filter pore size (μm)
SNU-HO-2-SP80	PVDF	outside-in	Φ225*2360	80	0.03
SNU-HO-2-HMAX40	PVDF	outside-in	Φ250*1365	52	0.03
