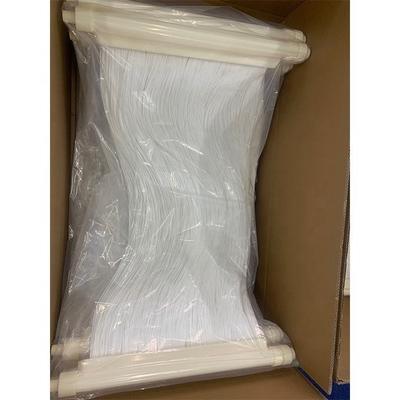

PES Hollow Fiber Ultrafiltration Membrane 30m2 Surface Area 225×1200mm

Large Image : PES Hollow Fiber Ultrafiltration Membrane 30m2 Surface Area 225×1200mm

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HI-1-H40

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

PES Hollow Fiber Ultrafiltration Membrane 30m2 Surface Area 225×1200mm

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Inside-out	Nominal Pore Size:	0.01μm
Size:	225×1200mm	Membrane Material:	PES
Surface Area:	30m2
Highlight:	30m2 Hollow Fiber Ultrafiltration Membrane , 225×1200mm Hollow Fiber Ultrafiltration Membrane , 225×1200mm PVDF Hollow Fiber Membrane

UF System Safe and Stable Operation Guide for MBR Membrane Element Operation SNU-HI-1-H40

Regular Models

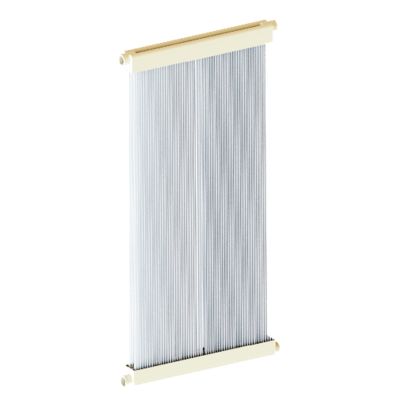

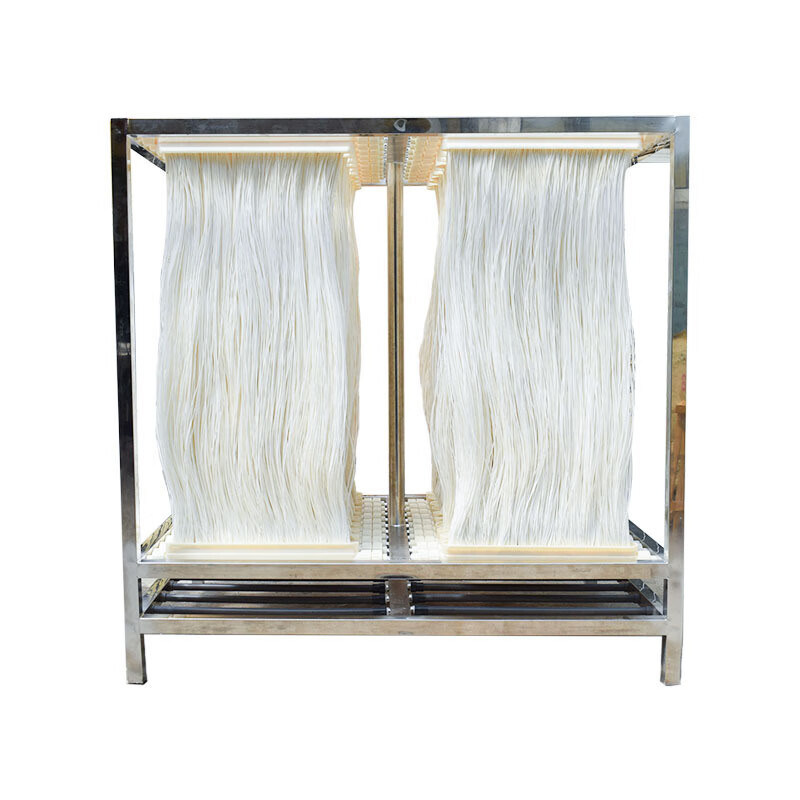

Model	MBR-I20	MBR-I15	MBR-I10	MBR-I6	MBR-I3
Element Size	630(W)2000(H)36mm(T)	630(W)1500(H)36mm(T)	630(W)1000(H)36mm(T)	600(W)760(H)40mm(T)	600(W)450(H)40mm(T)
Connection	Ф32	Ф32	Ф32	Ф32	Ф32
Effective membrane area	20m²	15m²	10m²	6m²	3m²

Technical Specifications

Nominal Pore size: 0.1um or 0.034µm
Material: PVDF membrane with PET support tube & ABS cartridge
Method of integration: MBR-I20 (both ends water catchment); MBR-I15/10/6/3 (one end water catchment)
Filtration mode: Negative pressure suction by submersed membrane

Model	Material	Flow Direction	Dimensions	Area (m²)	Pore Size (µm)
SNU-HI-1-H40	PES	inside-out	Φ225×1200	30	0.01
SNU-HI-1-H60	PES	inside-out	Φ225×1708	46	0.01

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 5 days. Specific time depends on your order volume.

Q: Can I get your products with our logo and design?

A: Customized service is available. We provide OEM or ODM by customer's logo.

Q: Do you accept sample order?

A: Yes, we can make your customized sample before mass order placed.

Q: What's the MOQ?

A: We can offer the quantity you required, as we don't dictate MOQ terms.
