Normal Operation and Maintenance for MBR Membrane Element Size SNU-HI-1-C1030

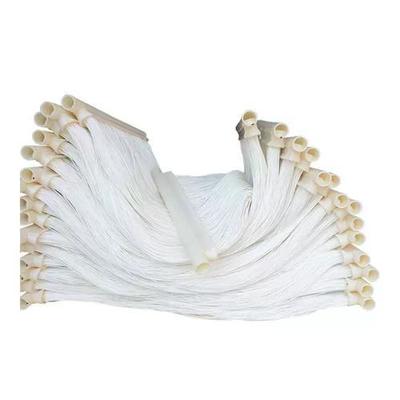

Hollow Fiber MBR Introduction

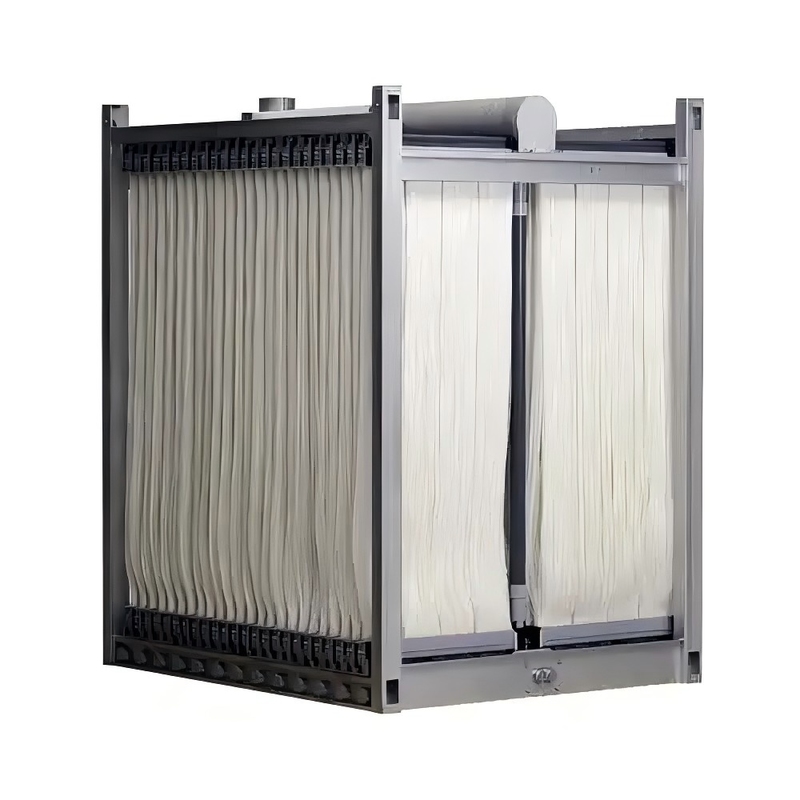

Membrane Bioreactor (MBR) is an advanced wastewater treatment technology combining high-efficiency membrane separation with biochemical processes. The hollow fiber membrane module performs direct solid-liquid separation in the biochemical pool, replacing traditional secondary sedimentation tanks while achieving superior muddy water separation.
The membrane's high-efficiency retention effect completely retains nitrifying bacteria in the bioreactor, enabling efficient nitrification reactions for effective ammonia nitrogen removal. It also retains difficult-to-degrade macromolecular organic matter while maximizing reactor residence time. With MBR technology, primary pollution removal rates reach:
- COD ≥ 93%
- Suspended solids and turbidity near zero
- Consistently high-quality output suitable for direct reuse
Our Advantages
- High strength construction
- Excellent anti-pollution performance
- Superior flux capacity
- Exceptional retention performance
- Effective cleaning flux recovery
Technical Parameters
| Model |
MBR-10 |
MBR-15 |
MBR-20 |
| Active membrane area |
10 m² |
15 m² |
20 m² |
| Thickness of membrane module |
45 mm |
| Dimension |
1-1-x535 mm |
1510x535 mm |
2010x535 mm |
| Membrane materials |
PVDF |
| Membrane Pore |
0.1/0.2 micron |
| Membrane ID/OD |
1.1/2.2 mm |
Product Specifications
| Model |
Material |
Flow Direction |
Dimensions |
Quantity |
Pore Size (micron) |
| SNU-HI-1-C1060 |
PES |
inside-out |
Φ250*1715 |
50 |
0.01 |
| SNU-HI-1-C1030 |
PES |
inside-out |
Φ250*965 |
23 |
0.01 |
Project Photos
Packaging
Company Profile
We are a high-tech enterprise specializing in reverse osmosis membranes, ultrafiltration membranes, nanofiltration, and MBR membrane assembly, production, and sales services. As a system design and proprietary service provider, we possess core technology for preparing reverse osmosis membrane components with high production capacity, aiming to establish China's premier membrane production brand.
Our product range includes reverse osmosis membrane components, nanofiltration membrane components, ultrafiltration membrane components, and high-performance MBR membranes. These products are widely applied in water purification, medical pharmaceuticals, municipal water supply, boiler replenishment, electronic ultrapure water, and material concentration/separation industries. With outstanding quality and excellent service, our products are exported worldwide.
