Long-Term Solution MBR Membrane for Enhanced UF System Operation
Product Usage Tips
Proper startup, cleaning, and maintenance of the UF system are essential for long-term membrane performance. Before system activation, verify that all valves, instruments, pretreatment equipment, signal transmission devices, and power equipment meet design specifications to ensure safe, stable, and compliant operation. Refer to the product technical manual for system commissioning and testing procedures.
Disclaimer
Failure to adhere to specified operating limits and guidelines voids our limited warranty. When the UF system is inactive, inject protective solution into the membrane module for corrosion prevention to avoid increased maintenance costs from microbial growth.
UF Membrane Element Size
Operation Guide
During UF system operation, avoid sudden pressure changes during startup, shutdown, cleaning, or maintenance. Never exceed the maximum pressure rating specified in this manual to prevent membrane breakage, seal failure, or housing damage. These products feature factory-applied corrosion protection with semi-dry membrane fibers. For manual operation, set water production rate to 50% of design capacity, with initial output discharged as non-potable water.
SINOMEMB® UF Membrane Specifications
| Model |
Membrane Material |
Operation Mode |
Dimensions (mm) |
Effective Area (㎡) |
Pore Size (μm) |
| SNU-HO-2-Z160S |
PVDF |
Outside-in |
Φ160×1330 |
30 |
0.03 |
Custom element models (membrane performance, dimensions) available based on order quantity.

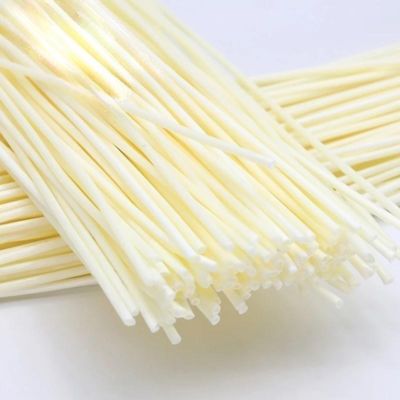

PTFE Hollow Fiber Membrane Specifications
| Specification |
FC-M1 |
FC-M2 |
FC-M3 |
| Dimensions (D×d/mm) |
φ2.35×φ1.26 |
φ2.26×φ1.18 |
φ2.26×φ1.18 |
| Pore Size (µm) |
3.5 |
0.45 |
0.2 |
| Hydrophilic |
No |
No |
Yes |
Technical Specifications
- Tensile Strength: >80N
- Material: 100% PTFE
- Operating pH: 0-14
- Temperature Range: 5-150°C
- Applications: FC-M3 hydrophilic membrane is ideal for potable water filtration, laboratory wastewater treatment, and thermal insulation sheaths
About SINOMEMB
Founded in 2012, SINOMEMB Environmental Industry Group is a high-tech enterprise specializing in membrane separation technology. The company has evolved from water treatment membrane development to encompass three major business segments: high-end separation membrane materials, environmental engineering equipment, and technical services. As a comprehensive environmental solutions provider, SINOMEMB integrates R&D, membrane material manufacturing, equipment production, and engineering operations, establishing itself as a global leader in membrane technology solutions.
