PVDF UF Membrane with 51 m2 Surface Area and 0.03 μm Nominal Pore Size for Industrial Wastewater Treatment

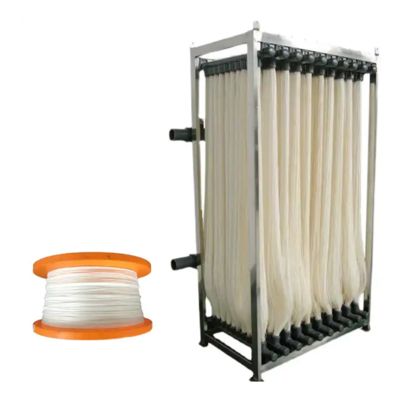

Large Image : PVDF UF Membrane with 51 m2 Surface Area and 0.03 μm Nominal Pore Size for Industrial Wastewater Treatment

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-KMP

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

PVDF UF Membrane with 51 m2 Surface Area and 0.03 μm Nominal Pore Size for Industrial Wastewater Treatment

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.03 μm
Size:	220×2060mm	Membrane Material:	PVDF
Surface Area:	51 M2
Highlight:	51 m2 Surface Area PVDF UF Membrane , 0.03 μm Nominal Pore Size PVDF UF Membrane , 220×2060mm Size PVDF UF Membrane

MBR Membrane for Long-Lasting and Low Maintenance Industrial Wastewater Treatment

Product Features

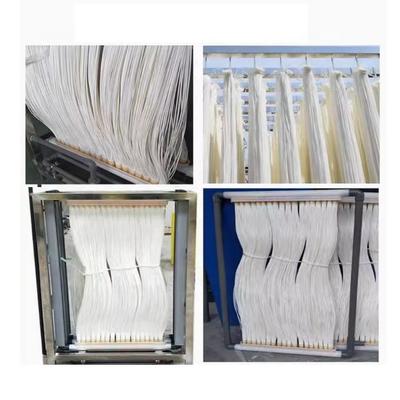

The Canpure curtain type membrane module adopts a full-open design to prevent polluting dead angles and is particularly advantageous in large-scale systems with strengths such as strong adaptability to membrane water, high packing density, and small floor space.

Complex Thermally Induced Phase Separation (c-TIPS) PVDF UF Membrane

Patented technology

Canpure PVDF membrane is made by Canpure's patented c-TIPS technology. It has capillary strength higher than PVDF membrane prepared by NIPS Method and much better filtration grade than PVDF membrane prepared by conventional TIPS Method.

Permanent Hydrophilic Property

Patented technology

During the preparation of Canpure PVDF membrane, hydrophilic substances are added and special cross-linking technique is applied, endowing the permanent hydrophilic property of the capillary, more stable product water flux, improved anti-fouling property and better cleaning recovery.

High Anti-oxidation Performance

Canpure PVDF membrane has high crystallinity, can tolerate oxidant with higher concentration, and thus can achieve more profound cleaning effect and longer life.

Double-end Water Production

Permeate water is produced from both the lower and upper ends in Canpure Membrane Modules. This offers larger flux and more even distribution of fouling load than traditional single-end water production mode, and also effectively reduces the TMP and prolongs the operation cycle.

Soft Potting

Patented technology

The soft potting technique initiated by Canpure realizes the flexible connection between the "root" of the capillaries and the soft layer of the potting material, and prevents the break of the root of the capillaries.

UF Specifications and Models

Model	Membrane Material	Operation Mode	Membrane Element Size (mm)	Effective Membrane Area (㎡)	Nominal Filter Pore Size (μm)
SNU-HO-2-KMP	PVDF	outside-in	Φ220×2060	51	0.03
SNU-HO-2-D2020AN	PVDF	outside-in	Φ216×2160	72	0.01
