SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

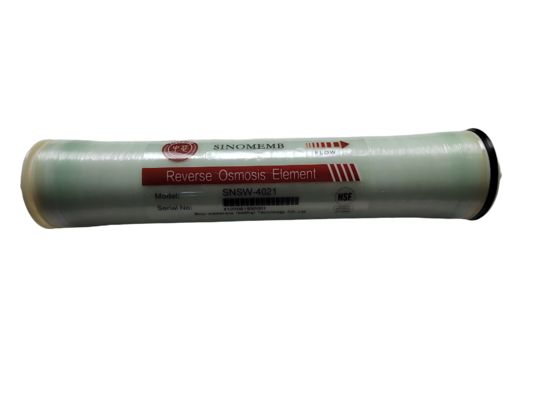

Large Image :  SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

Product Details:
Place of Origin: China
Brand Name: SINOMEMB
Certification: NSF
Model Number: SNSW-4021
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥3,637.70/pieces >=1 pieces
Packaging Details: Standard export packaging
Supply Ability: 1500000 Piece/Pieces per Month
Contact Now

SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

Description
Core Components: RO Sheet Warranty: 1 Year
Productivity: 500GPD Weight (kg): 2.5 Kg
Product Name: Seawater Desalination Reverse Osmosis Membrane Application: Water Purification
Usage: Desalination Salt Rejection %: 99.4
Working Pressare Psi: 800Mpa Size: 580*120*120
Highlight:

500GPD Seawater RO Membrane

,

580x120x120mm Seawater RO Membrane

,

580x120x120mm 500 GPD RO Membrane

Advanced SINOMEMB reg SNSW Series Seawater RO Membrane Elements for Industrial Water Treatment
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 0 SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 1
Product Parameters
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 2
Dimensions for 4021 Model
Model A/mm(inch) B/mm(inch) C/mm(inch) D/mm(inch) E/mm(inch)
4021 533.4(21) 101.6(4.0) 19.1(0.75) 26.7(1.05) 480(18.9)
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 2
Dimensions for 8040 Model
Model A/mm(inch) B/mm(inch) C/mm(inch)
8040 1016(40) 203.2(8.0) 29.1(1.15)
SW-4021 Specifications
Parameter Value
Effective membrane area ft2(m2) 33(3.1)
Average yield GPD(m3/d) 750(2.8)
Salt rejection(%) 99.5
Recovery rate(%) 4
Operating pressure psi(Mpa) 800(5.5)
Max.operating pressure psi(Mpa) 1200(8.2)
Max.inflow temperature(℃) 45
Max.inflow SDI 5
Free chlorine concentration <0.1
Continuous running water pH range 3-10
Chemical cleaning water pH range 2-11
Max.single membrane element pressure drop psi(Mpa) 15(0.1)

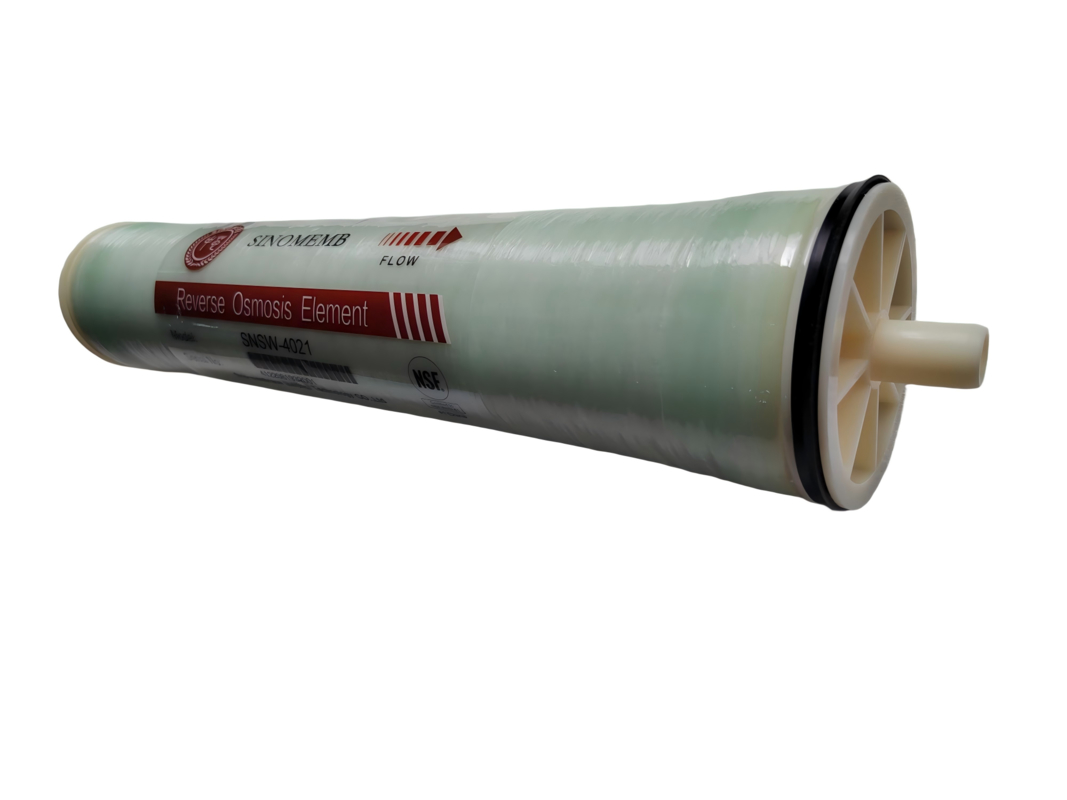

Details Images
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 4
Test Conditions
Test pressure: 800psi (5.5Mpa)
Test liquid temperature: 25℃
ppm: 32000ppm(NaCl),5ppm(Boron)
Test liquid PH value: 8
Recovery rate of single membrane: 2%(2514),8%(2540,4040,8040),4%(2521,4021)
Absolute Maximum Ratings
Max operating pressure of 8 inches and 4 inches: 1200psi(8.3Mpa)
Max operating pressure of 2.5-inch and other models: 1000psi(6.9Mpa)
Max feed flow of 8 inch membrane: 75gpm(17 m3/h)
Maximum feed flow of 4 inches: 16gpm(3.6 m3/h)
Maximum feed flow of 2.5 inches: 6gpm(1.4 m3/h)
Max feed temperature: 45℃
Max feed continuous operation temperature when PH > 10: 35℃
Max feed SDI15: 5
Influent free chlorine concentration: <0.1ppm
PH range of feed water during continuous operation: 2～11
PH range of inflow during chemical cleaning (30 Min): 1～13
Max pressure drop of single membrane: 15psi(0.1Mpa) (2540,2514,4021,4040,2521,8040), 13psi(0.09Mpa) (8040HF)
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane 5
