Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane

Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane
Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane

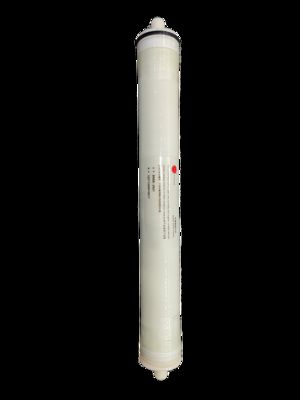

Large Image :  Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane

Product Details:
Place of Origin: China
Brand Name: SINOMEMB
Certification: NSF
Model Number: SNSW-2521
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥3,637.70/pieces >=1 pieces
Packaging Details: Standard export packaging
Supply Ability: 1500000 Piece/Pieces per Month
Contact Now

Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane

Description
Core Components: RO Sheet Warranty: 1 Year
Productivity: 400GPD Weight (kg): 2.5 Kg
Product Name: Seawater Desalination Reverse Osmosis Membrane Application: Water Purification
Usage: Desalination Salt Rejection %: 99.4
Working Pressare Psi: 800Mpa
Highlight:

400GPD Seawater RO Membrane

,

Desalination Seawater RO Membrane

,

High Concentration 400GPD RO Membrane

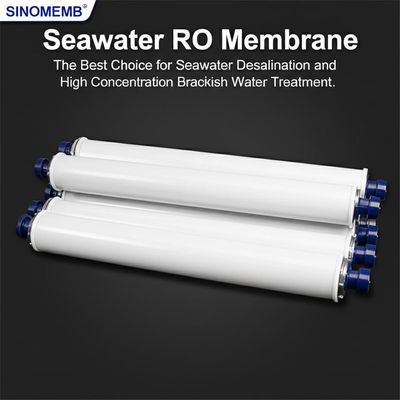

SINOMEMB® reg Seawater RO Membrane - The Best Choice for Seawater Desalination and High Concentration Brackish Water Treatment
Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 0 Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 1
SINOMEMB® Sea Water SNSW Series RO Membrane Elements
SINOMEMB® quality water desalination (SNSW) series products feature advanced membrane technology with optimized ultrafiltration support layer structure and thickened desalting adjustment. The specialized water channel cloth selection in the rolling process enables these membranes to withstand high-pressure, high-pollution working conditions in water desalination applications.
Product Overview
SINOMEMB® Seawater Desalination series (SNSW) membrane elements are designed for seawater with salt content above 20,000 PPM and high concentration brackish water. Through optimized membrane structure and fully automated, high-precision manufacturing processes, these membranes reduce surface fouling and significantly lower operational costs.
Key advantages include:
  • Stable boron removal and desalination rates
  • Low operating pressure with high water yield
  • Reduced investment and operation costs
  • Capable of producing drinking water from seawater in single-stage systems
Applications include seawater desalination, high concentration brackish water treatment, seawater recycling, power plant water recharge, wastewater reuse, landfill leachate treatment, and food processing.
Product Specifications
Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 2
Dimensions
Model A/mm(inch) B/mm(inch) C/mm(inch) D/mm(inch) E/mm(inch)
2514 356(14) 63.5(2.5) 19.1(0.75) 26.7(1.05) 302.6(11.9)
2521 533.4(21) 63.5(2.5) 19.1(0.75) 26.7(1.05) 480(18.9)
8040 1016(40) 203.2(8.0) 29.1(1.15) - -
Performance Specifications
Model SW-2514 SW-2521
Effective membrane area ft²(m²) 6.5(0.6) 12(1.1)
Average yield GPD(m³/d) 150(0.6) 270(1.0)
Salt rejection(%) 99.5 99.5
Recovery rate(%) 4 4
Operating pressure psi(Mpa) 800(5.5)
Max. operating pressure psi(Mpa) 1200(8.2)
Max. inflow temperature(℃) 45
Max. inflow SDI 5
Free chlorine concentration <0.1
Continuous running water pH range 3-10
Chemical cleaning water pH range 2-11
Max. single membrane element pressure drop psi(Mpa) 15(0.1)
Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 3 Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 4
Test Conditions
  • Test pressure: 800psi (5.5Mpa)
  • Test liquid temperature: 25℃
  • Test solution: 32000ppm (NaCl), 5ppm (Boron)
  • Test liquid PH value: 8
  • Recovery rate of single membrane: 2%(2514), 8%(2540,4040,8040), 4%(2521,4021)
Absolute Maximum Ratings
  • Max operating pressure: 1200psi(8.3Mpa) for 8" and 4" models, 1000psi(6.9Mpa) for 2.5" models
  • Max feed flow: 75gpm(17 m³/h) for 8", 16gpm(3.6 m³/h) for 4", 6gpm(1.4 m³/h) for 2.5"
  • Max feed temperature: 45℃
  • Max feed continuous operation temperature when PH > 10: 35℃
  • Max feed SDI15: 5
  • Influent free chlorine concentration: <0.1ppm
  • PH range for continuous operation: 2-11
  • PH range for chemical cleaning (30 Min): 1-13
  • Max pressure drop of single membrane: 15psi(0.1Mpa) for most models, 13psi(0.09Mpa) for 8040HF
Desalination Seawater RO Membrane High Concentration 400GPD RO Membrane 5

Tag:

Desalination Reverse Osmosis Membrane,

Salt Water RO Membrane,

8040 RO Membrane
