Customize Flat Sheet MBR Membrane 250×2215mm SNU-HO-2-C1080 High Efficiency

Large Image : Customize Flat Sheet MBR Membrane 250×2215mm SNU-HO-2-C1080 High Efficiency

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-C1080

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

Customize Flat Sheet MBR Membrane 250×2215mm SNU-HO-2-C1080 High Efficiency

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.03μm
Size:	250×2215mm	Membrane Material:	PVDF
Surface Area:	105m2
Highlight:	Customize Flat Sheet MBR Membrane , 250×2215mm Flat Sheet MBR Membrane , Customize hollow fibre UF membrane

Product details

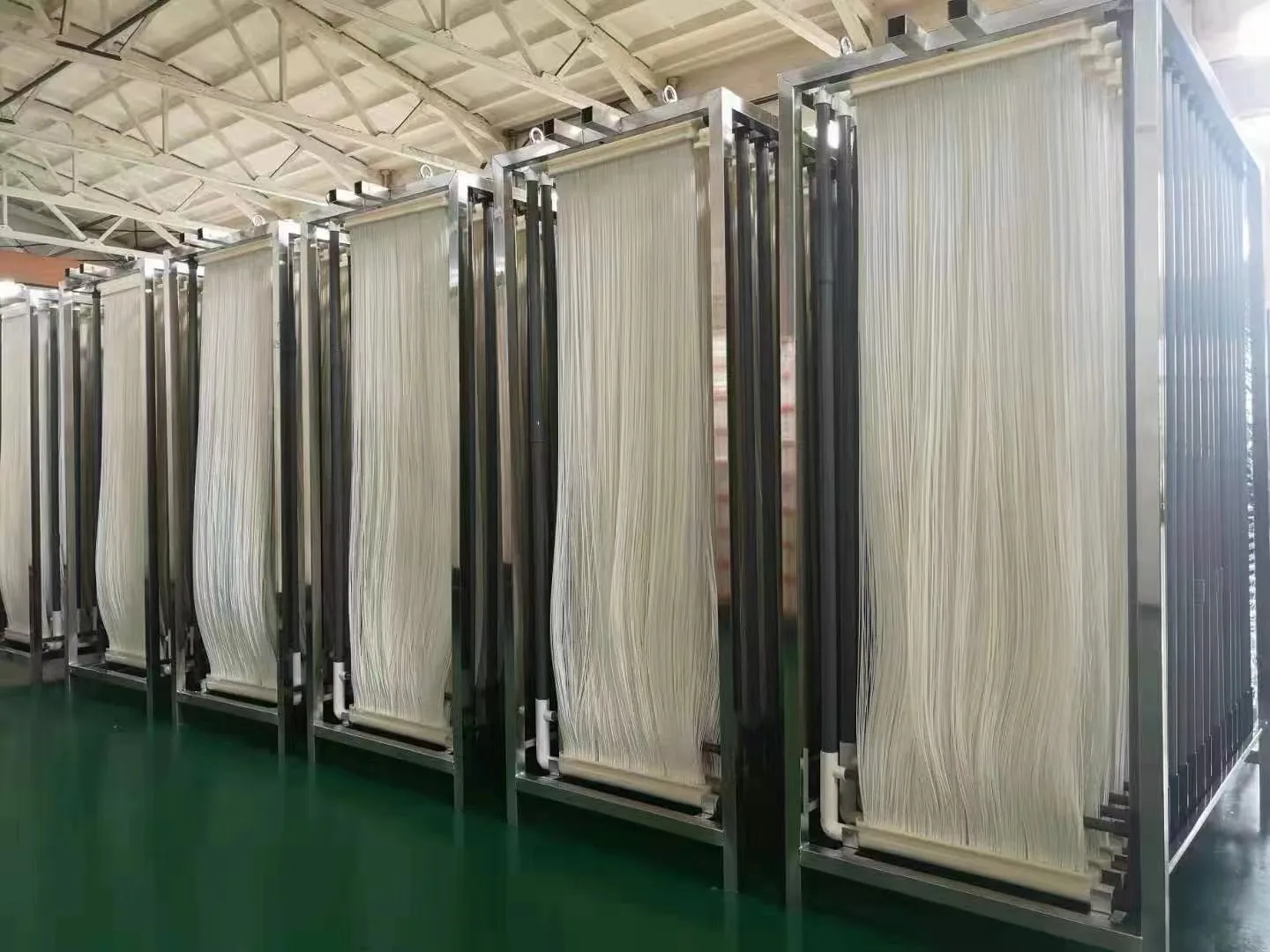

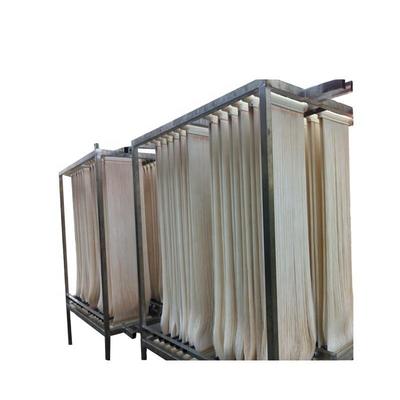

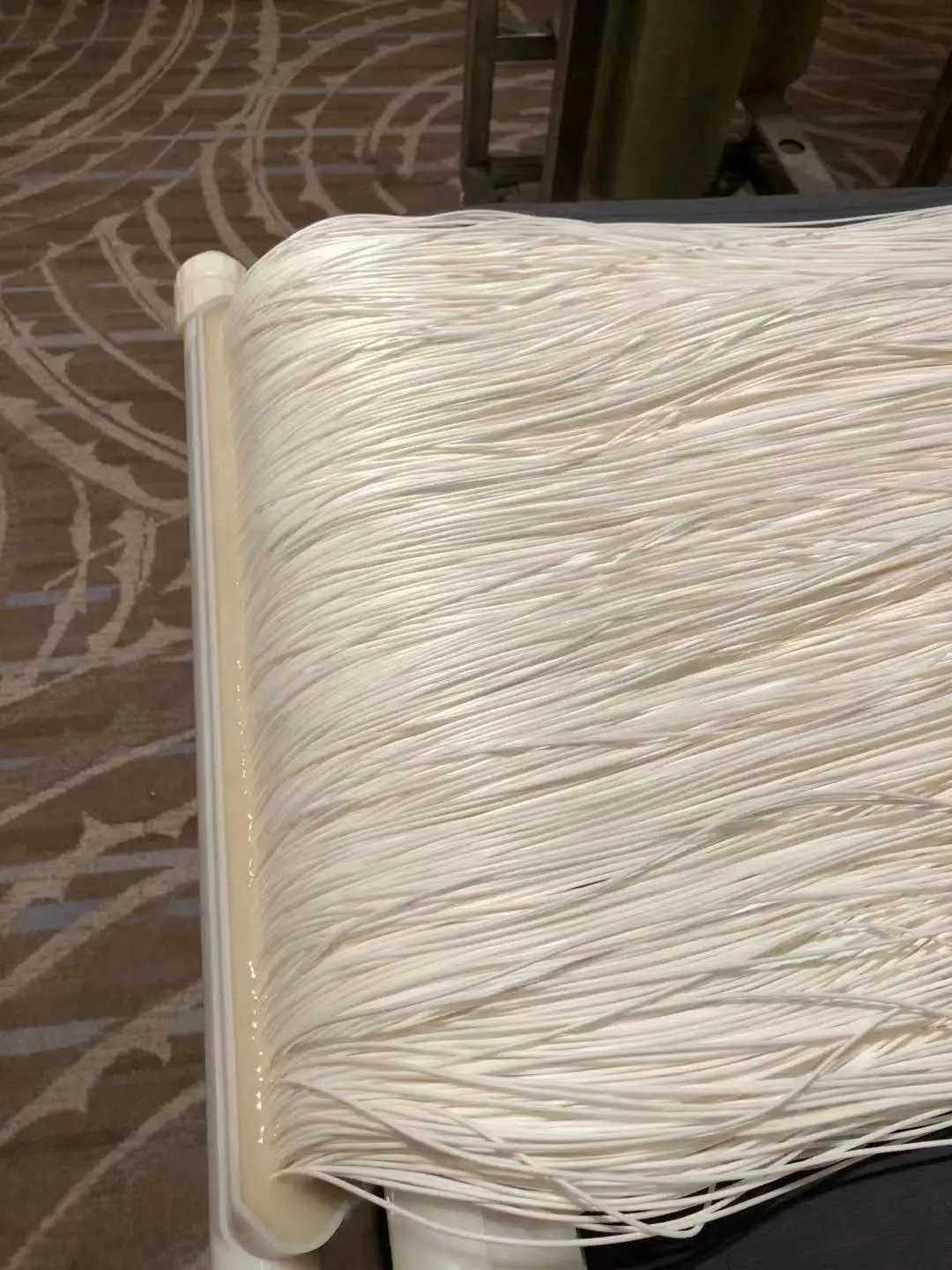

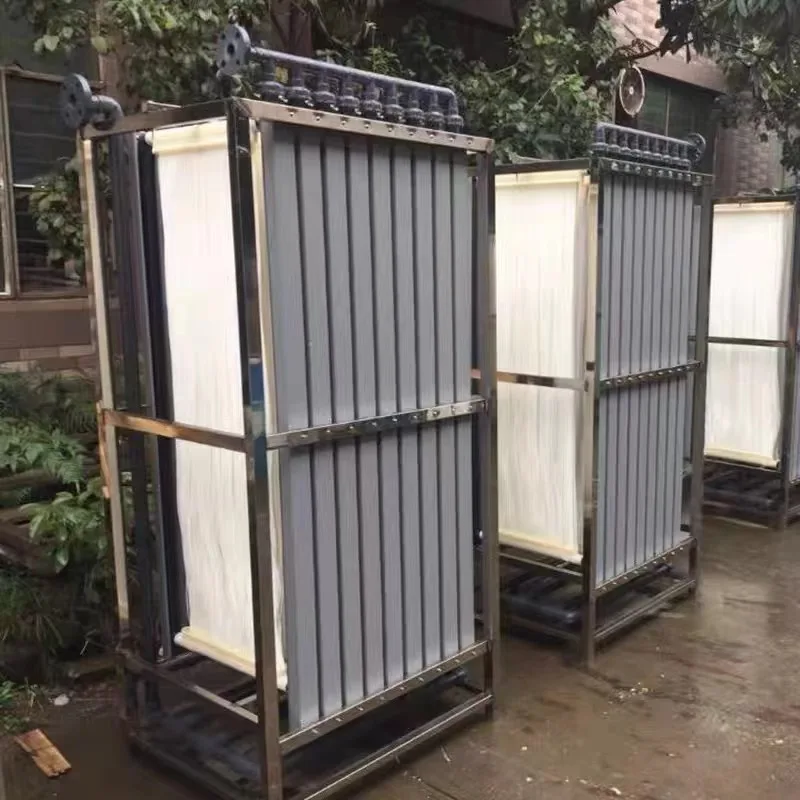

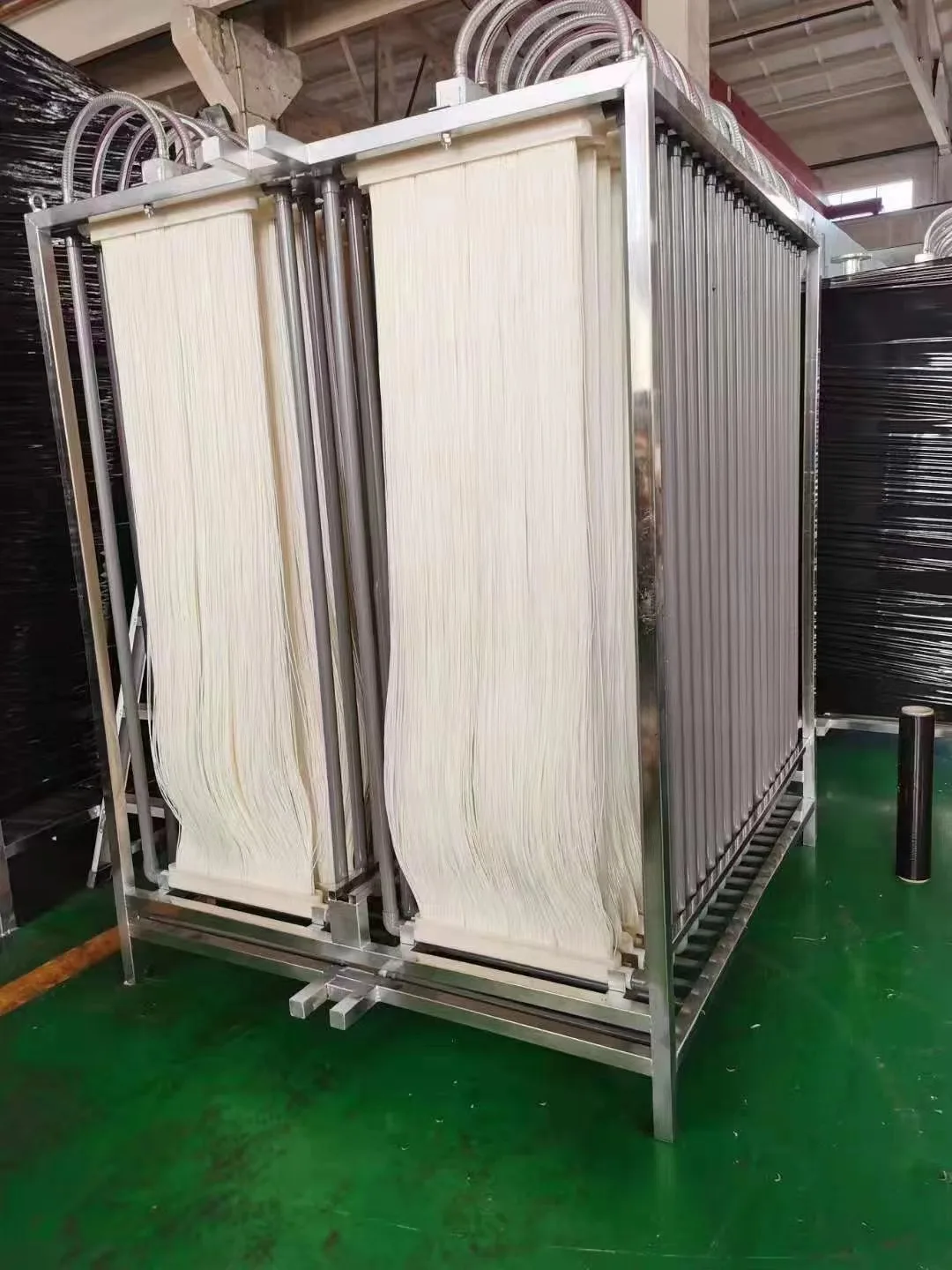

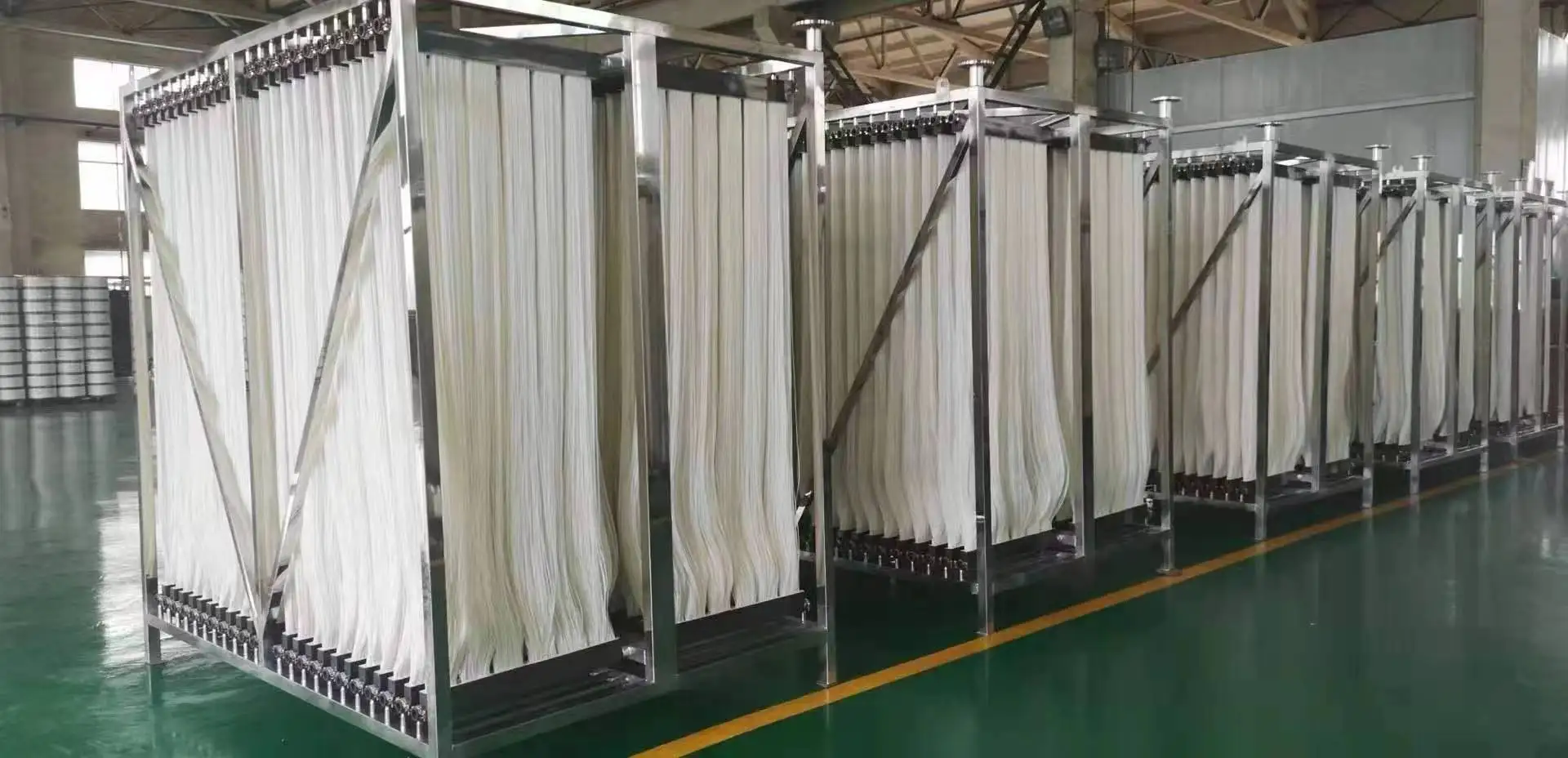

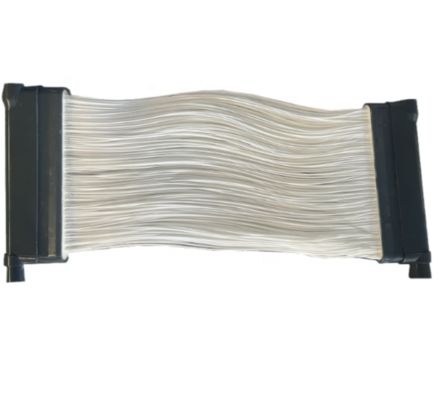

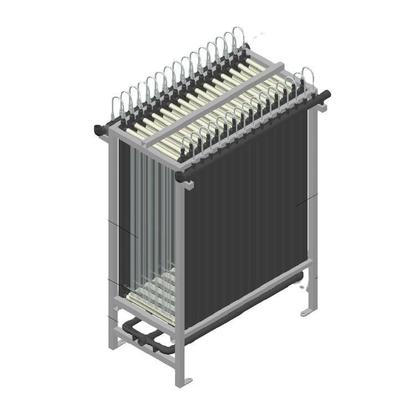

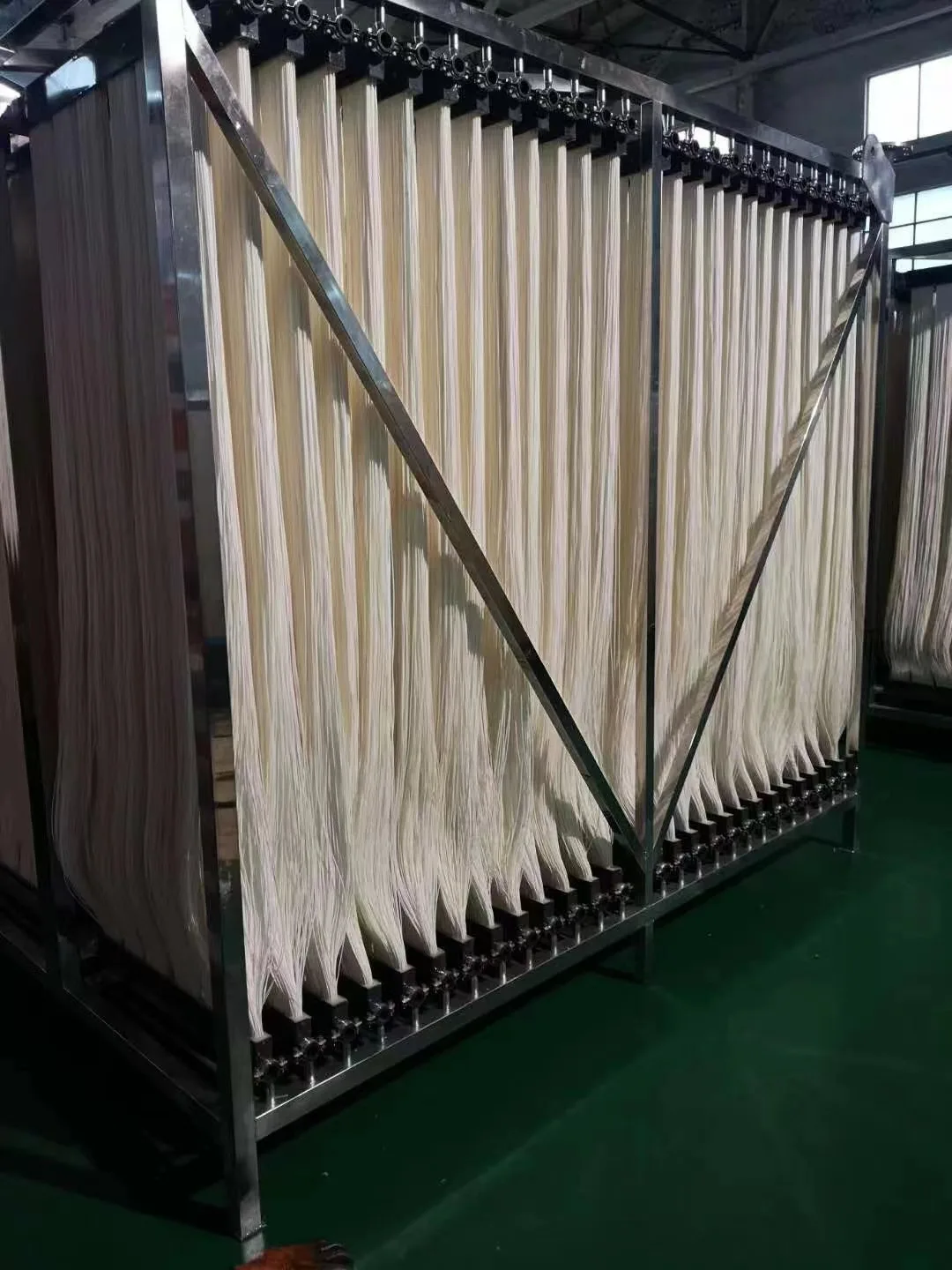

Membrane Bioreactor MBR Submerged Membrane Hollow fiber membrane MBR factory price

Dimension(W×H,mm)	540mm*1000mm
Active membrane area	10㎡
Designed membrane flow	10-25L/m2.h (according to the water quality)

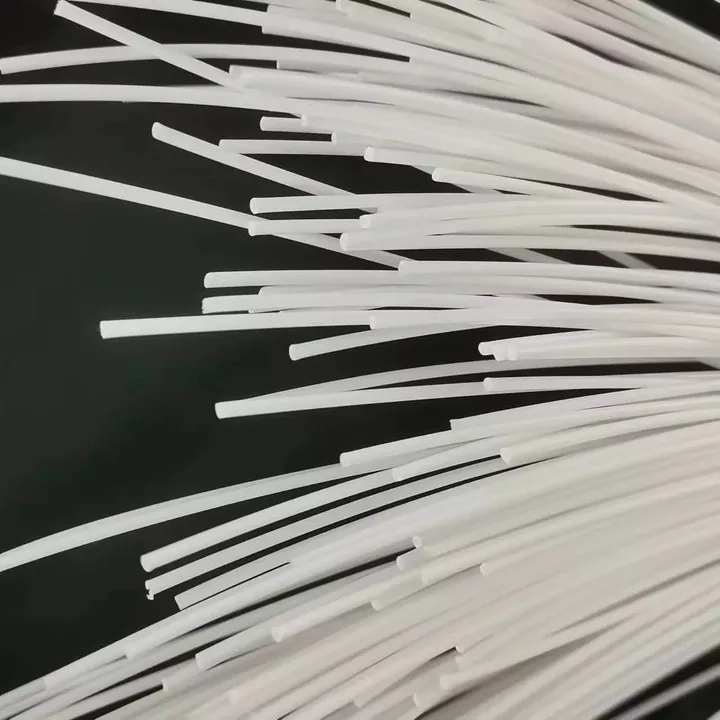

Hollow fiber ID/OD	1.0mm/2.2mm
Pore size	<0.1μm
MWCO	200,000Dalton
Filter method	Outside-in
Operating Mode	Negative suction
Cleaning PH Range	2-12
Operating PH Range	6-9
Adhesive material	Epoxy and polyurethane
Collecting water pipe material	ABS
MLSS	<8000mg/L
Operating procedure	Open 8mins,stop 2mins

MBR principle:

MBR (Membrane Biological Reactor), is a new waste water treatment equipment combining advantages of UF system and biological reactor. Activated sludge and microorganism in it will absorb and resolve organic pollutant in waste water, leave pure water. UF membrane is to separate water and mud, can replace second setting pond. Meanwhile, membrane keeps activated sludge microorganism

in biological reactor for long time, make a high biological concentration which means high oxygenation efficiency of microorganism to organics.

Applications:

It can be used for municipal sewage and industrial waste water treatment and substitute for secondary sedimentation tank in removing suspended particles, so as to increase nitrogen removal rate and organics degradation rate.

Youber hollow fiber MBR membrane module can be widely used in various waste water processes with high BOD and suspended solidscontent, including the following:

1)Municipal drainage treatment

2)Industrial waste water treatment, including chemical and food processing waste water etc.

3)Waste water treatment in aquaculture plants

4)Waste Penetration Treatment

5)Treatment and reuse of pharmaceutical waste water

Vocee Reinforced PVDF MBR Membrane Application

1. Urban sewage treatment and water reuse in buildings

2. Industrial wastewater treatment

3. Micro-polluted drinking water purification

4. Fecal sewage treatment

5. Landfill / compost permeate treatment

Vocee PVDF MBR Membrane features

1)High strength: PVDF reinforced, the tensile strength is more than 50times higher than ordinary membrane fiber,and the tensile

strength ≥200N

2)Chemical resistance: acid and alkali resistance, corrosion resistance, good chemical stability, not easy to produce chemical

embrittlement cracking.

3)High flux: the water flux is 60% higher than ordinary membrane fiber.

4)Membrane module design: smaller footprint,higher MLSS retention,lower cost and longer service life.

UF specifications and models	Membrane material	Operation mode	Membrane element size (mm)	Effective membrane area (㎡)	Nominal filter pore size (μm)
SNU- HI-1 -C1080	PES	inside-out	Φ250×2215	68	0.01
SNU- HI-1 -C1060	PES	inside-out	Φ250×1715	50	0.01
SNU- HI-1 -C1030	PES	inside-out	Φ250×965	twenty three	0.01
SNU- HI-1 -C0650A	PES	inside-out	Φ187×1399	16	0.01
SNU-HI-1-NX55	PES	inside-out	Φ225×1902	55	0.02

Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.

FAQ

Q: Are you trading company or manufacturer?

A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.

Q:What about the lead time?

A:Sample needs 3-5 days, mass production needs 1-2 weeks after the payment.

Q:Can I have a sample order for UF/MBR Membrane?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q:Is it OK to print my logo on UF Membrane product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q:What's the information we need to know?

A1: what's your raw water ?

B1: what's the capacity per hour of the equipment ?

C1: What's the application of purifier water ?
