High Toughness PES MBR Membrane 46m2 Surface Area 225×1708mm Polyacrylonitrile Membrane

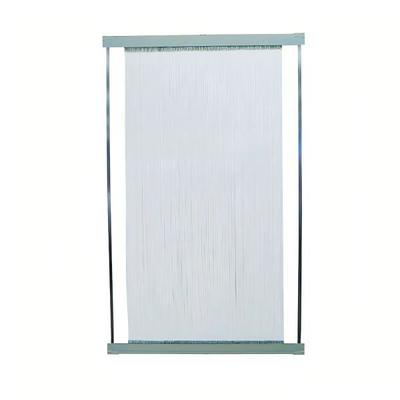

Large Image : High Toughness PES MBR Membrane 46m2 Surface Area 225×1708mm Polyacrylonitrile Membrane

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HI-1-H60

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

High Toughness PES MBR Membrane 46m2 Surface Area 225×1708mm Polyacrylonitrile Membrane

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.01μm
Size:	225×1708mm	Membrane Material:	PES
Surface Area:	46m2
Highlight:	High Toughness MBR Membrane , 46m2 MBR Membrane , 225×1708mm Polyacrylonitrile Membrane

Normal Operation and Maintenance for MBR Membrane Element Size SNU-HI-1-H60

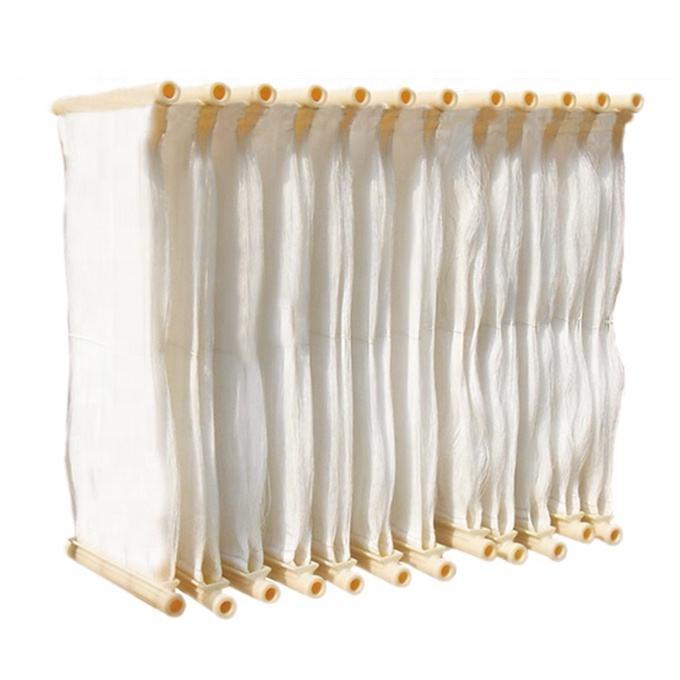

SNU-HM Hollow Fiber Submerged Curtain UF

The SNU-HM type hollow fiber submerged curtain UF utilizes special patented spinning technology with reinforced lining, combining all advantages of PVDF material membrane filaments with enhanced strength and toughness. This innovation addresses traditional PVDF membrane weaknesses of low strength and fragility, making it ideal for high-intensity aeration environments in MBR processes. With design flux optimized for different water qualities, its online cleaning cycle typically ranges between 7 to 17 days.

Membrane Element Specifications and Performance

Model	SNU-HM-Ⅰ	SNU-HM-Ⅱ
Specifications (mm)	630150036	630200036
Membrane diameter (mm)	1.5/2.6	0.8/1.4
Effective membrane area (㎡)	15	20
Filtration precision (μm)	0.05
Membrane material	Modified PVDF (polyvinylidene fluoride) and PET (polyester) support tubes
Connecting pipe specification	Φ32
Water collection method	Water catchment at both ends
Filter method	Submerged Suction Filtration
PH value	2-12
Temperature (°C)	10-45
Oil content (ppm)	<3
Transmembrane pressure TMP (Mpa)	0.02-0.05
Backwash pressure (Mpa)	0.1
Aeration rate (m³/h)	Air-water ratio 15:1-20:1
Backwash water flux (L/㎡·h)	25-50	25-36
Collecting pipe center distance (mm)	1500
Sludge concentration (ppm)	4000-12000	3000-10000
Design flux (L/㎡·h)	15-25	12-18
Product water quality	Turbidity≤0.2NTU, SDI≤3
Service life	≥3 years under standard conditions

Operation Guide

During UF system operation, avoid sudden pressure changes during startup, shutdown, or maintenance to prevent membrane damage. The product has been pre-treated with anti-corrosion and membrane wire protection. For initial operation, set water production rate to 50% of design capacity and discharge initial production.

Product Usage Tips

Proper system startup and maintenance are crucial for long-term performance. Verify all valves, instruments, pre-treatment equipment, and power systems meet design specifications before operation. Refer to technical manuals for system testing and debugging procedures.

Disclaimer: Failure to follow specified operating limits voids warranty. For inactive systems, inject protective liquid into membrane modules to prevent microbial growth and increased maintenance costs.

UF Specifications and Models

Model	Membrane Material	Operation Mode	Membrane Element Size (mm)	Effective Membrane Area (㎡)	Nominal Filter Pore Size (μm)
SNU-HI-1-H60	PES	inside-out	Φ225*1708	46	0.01

Note: Custom element models (membrane performance, appearance size) available based on order quantity.
