180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

Large Image : 180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-G1500

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

180×1920mm Ultrafiltration Membrane 0.03μM Pore 55.7m2 Surface Area

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Inside-out	Nominal Pore Size:	0.03μm
Size:	180×1920mm	Membrane Material:	PES
Surface Area:	55.7m2
Highlight:	180×1920mm Ultrafiltration Membrane , 0.03μM Pore Ultrafiltration Membrane , 55.7m2 Surface Area PES Membrane

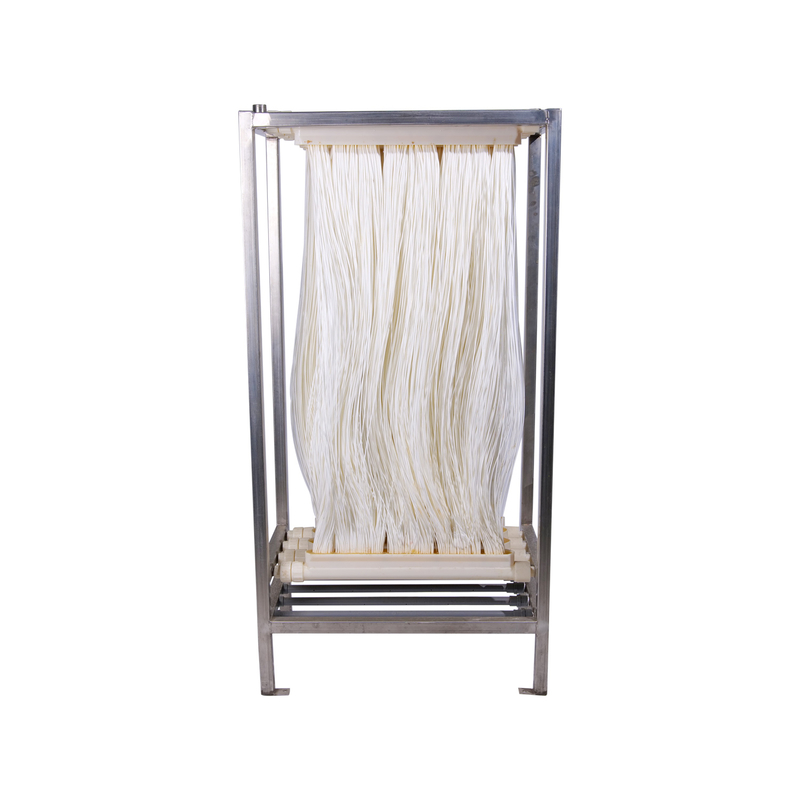

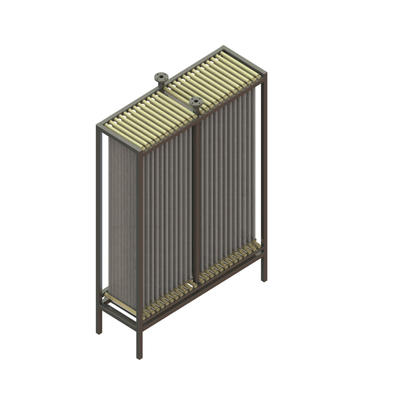

MBR Membrane Element Size for Wastewater Reuse System

High-performance UF membrane element designed for industrial wastewater treatment plants.

Key Features

High intensity: PVDF alloy membrane with compact double layer structure for superior durability
Anti-pollution performance: Smooth membrane surface with unique electric charge properties
Large membrane flux: Special nanometer material forms reticular structure for high porosity
Superior interception: Compact double cortex structure ensures excellent filtration
Easy cleaning: Pollutants remain on surface for simple maintenance and flux recovery
Compact design: Modular structure with small footprint for easy installation

Standard Specifications

Model No.	KH-MBR-12-Co-PVDF	KH-MBR-15-Co-PVDF	KH-MBR-18-Co-PVDF
Membrane Area	12 m²	15 m²	18 m²
Height	1550 mm	1850 mm	1850 mm
Width	645 mm	645 mm	645 mm
Weight	7 kg	8 kg	10 kg
Micropore Size	0.05μm	0.05μm	0.05μm
Inner Diameter	Φ1.0 mm	Φ1.0 mm	Φ1.0 mm
Outside Diameter	Φ2.4 mm	Φ2.4 mm	Φ2.4 mm

UF Specifications

Model	Membrane Material	Operation Mode	Element Size (mm)	Membrane Area (㎡)	Pore Size (μm)
SNU-HI-1-K600ER	PES	Inside-out	Φ216*2130	60	0.02

Note: Custom element models (membrane performance, appearance size) available based on order quantity requirements.
