0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems

Large Image : 0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-D1020AN

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems

Description

Core Components:	MBR	Product Name:	Hollow Fiber Ultrafiltration Membrane, Ultrafiltration System, PVC Hollow Fiber UF Membrane Module
Pore Size:	Customized., From 1μm To 0.05μm, 0.01micron, 1.0μm, 0.2μm	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.01 μm
Size:	216×1120mm	Surface Area:	29 M2
Filtration Methods:	Outside-in	Package:	Plastic Bags
Product Type:	Skincare	Application:	Apply A Few Drops To Clean Skin, Morning And Evening
Ph Range:	2-11	Membrane Materials:	PVDF
Work Pressure:	0.02-0.04MPa	Backwash Flux:	30-50 LMH
Temperature Range:	5-40°c
Highlight:	0.01mm Pore PVDF Hollow Fiber Membrane , 29M2 PVDF Hollow Fiber Membrane , Water Treatment PVDF Ultrafiltration Membrane

UF Membrane Element with Wire Protection for Safe and Stable Operation in Water Treatment System

0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems 0

0.01mm Pore PVDF Hollow Fiber Membrane 29M2 Surface Area For Water Treatment Systems 1

The normal start-up and regular cleaning maintenance of the UF system are essential for ensuring long-term performance of membrane products. Before system startup, verify that all valves, instruments, pre-treatment equipment, signal transmission devices, and power equipment parameters meet design specifications to guarantee safe, stable, and compliant system operation. Refer to the product technical manual for detailed system commissioning and testing procedures.

Disclaimer

Failure to strictly adhere to the specified operating limits and guidelines voids our limited warranty. When the UF system is not in operation, inject protective liquid into the membrane module for corrosion prevention to avoid increased maintenance costs from microbial growth in the system.

Partial OEM Model Parameters of SINOMEMB® UF Membrane

UF Specifications and Models	Membrane Material	Operation Mode	Membrane Element Size (mm)	Effective Membrane Area (㎡)	Nominal Filter Pore Size (μm)
SNU-HO-2-D1020AN	PVDF	Outside-in	Φ216×1120	29	0.01
SNU-HO-2-SP40	PVDF	Outside-in	Φ160×1804	40	0.03

Product Description

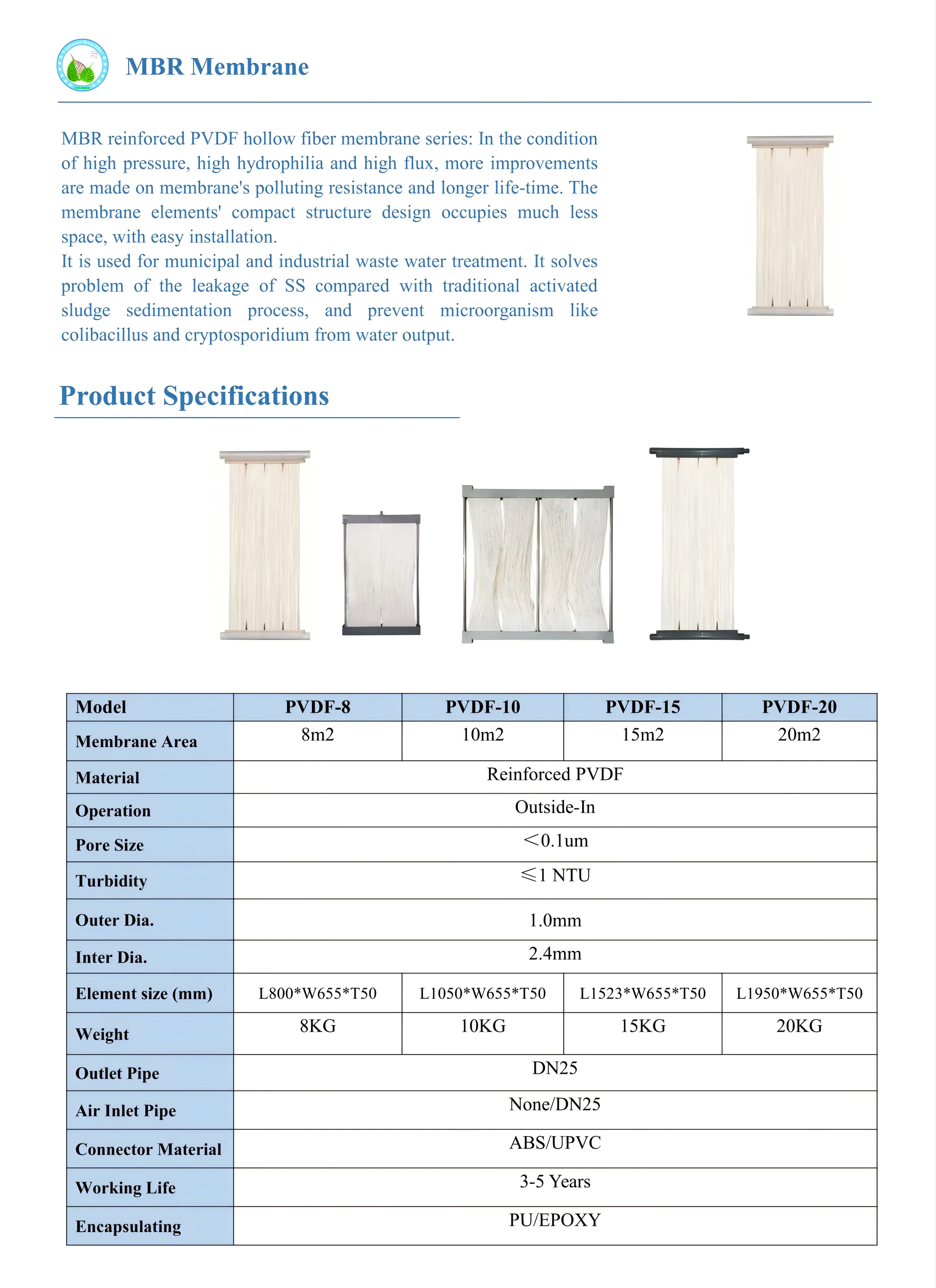

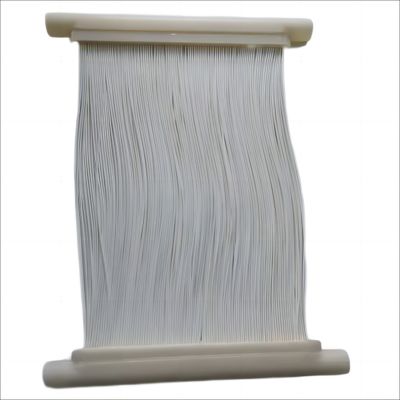

MBR Reinforced PVDF Hollow Fiber Membrane series: In the condition of high pressure, high hydrophilia and high flux, more improvements are made on membrane^ polluting resistance and longer life-time. The Industrial Curtain Membrane elements* compact structure design occupies much less space, with easy installation. It is used for municipal and industrial waste water treatment. Curtain MBR Membrane solves problem of the leakage of SS compared with traditional activated sludge sedimentation process, and prevent microorganism like colibacillus and cryptosporidium from water output

Model	PVDF-8	PVDF-10	PVDF-15	PVDF-20
Membrane Area	8m2	10m2	15m2	20m2
Material	Reinforced PVDF
Operation	Outside-In
Pore Size	＜0.1um
Turbidity	≤1NTU
Outer Dia.	1.0mm
Inter Dia.	2.4mm
Element size (mm)	L800W655T50	L1050W655T50	L1523W655T50	L1950W655T50
Weight	8KG	10KG	15KG	20KG
Outlet Pipe	DN25
Air Inlet Pipe	None/DN25
Connector Material	ABS/UPVC
Working Life	3-5 Years
Encapsulating	PU/EPOXY
