8" x 40" PVDF MBR Membrane with 0.1 μm Pore Size for Wastewater Treatment and

Large Image : 8" x 40" PVDF MBR Membrane with 0.1 μm Pore Size for Wastewater Treatment and

Product Details:

Place of Origin:	China
Brand Name:	SINOMEMB
Certification:	NSF
Model Number:	SNU-HO-2-Z250

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Standard export packaging

Contact Now

8" x 40" PVDF MBR Membrane with 0.1 μm Pore Size for Wastewater Treatment and

Description

Core Components:	MBR	Usage:	Waste Water Treatment, , Liquid Filter, Remove Bacterias, Purification
Module:	Out-inside	Nominal Pore Size:	0.1 μm
Size:	250×1715mm	Membrane Material:	PVDF
Surface Area:	10-100 M2	Cleaning Method:	Chemical Cleaning
Package:	Carton	Backwash Method:	Air Scouring
Plate Material:	ABS	Membrane Fiber Shape:	Hollow Fiber
Material:	Polymeric Membrane	Condition:	Used
Type:	Water Treatment System	Membrane Area:	25m2
Supports:	UPVC Pipe	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Membrane Size:	100063036mm
Flow Rate:	10-20L/m2.h	Cruelty-Free:	Yes
Processing Type:	Softening, Desalination, Filtration
Highlight:	8" x 40" MBR Membrane , 0.1 μm Pore Size PVDF Membrane , Ph Range 2-11 Hollow Fiber Membrane

High-Performance MBR Membrane for Filtration SNU-HO-2-Z250

Model	Membrane Material	Operation Mode	Element Size (mm)	Effective Area (㎡)	Pore Size (μm)
SNU-HO-2-Z250	PVDF	Outside-in	Φ250×1715	75	0.03

Note: Custom element models (membrane performance, dimensions) available based on order quantity.

Product Description

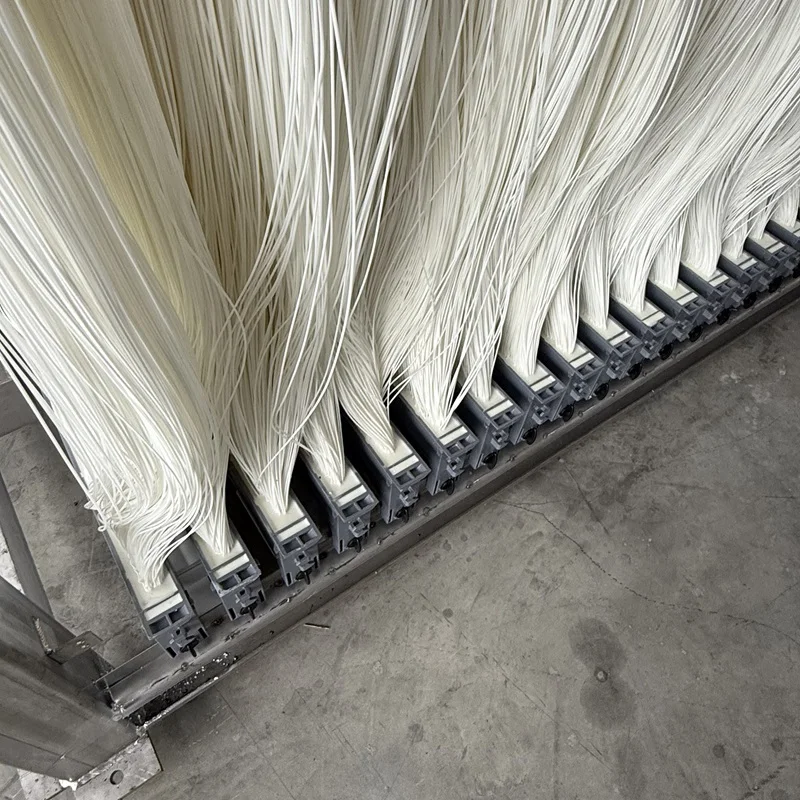

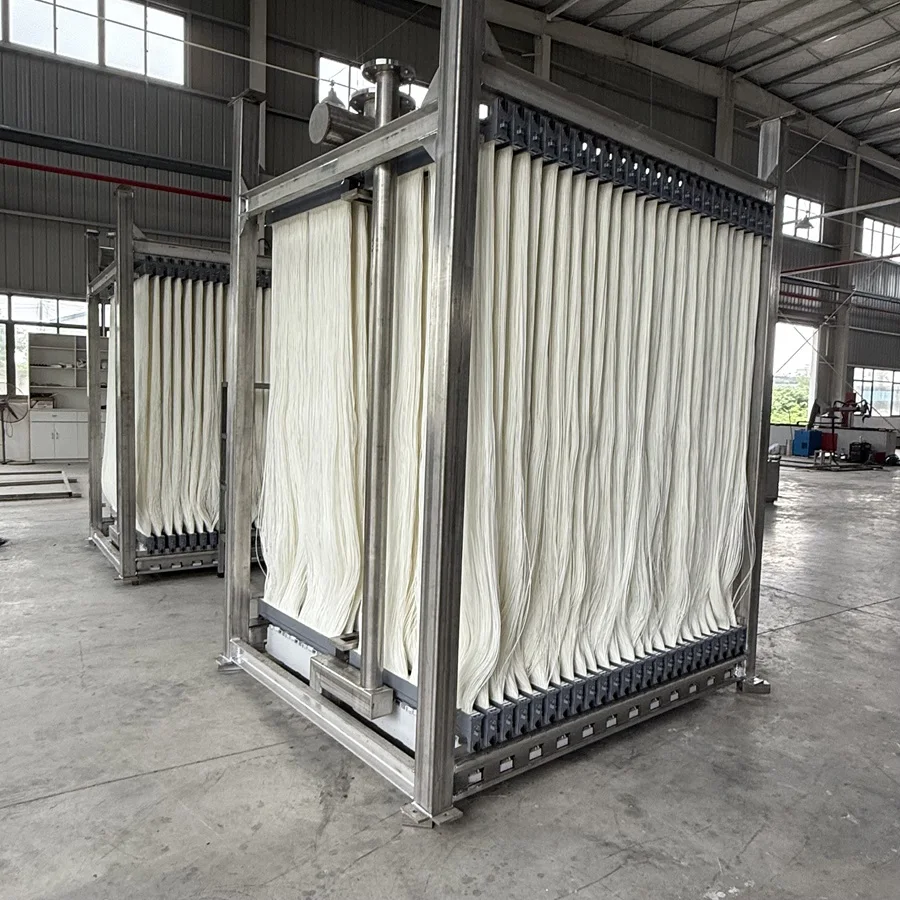

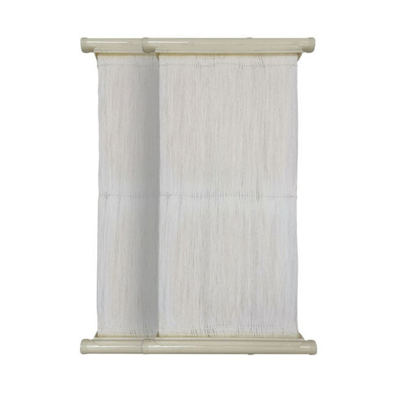

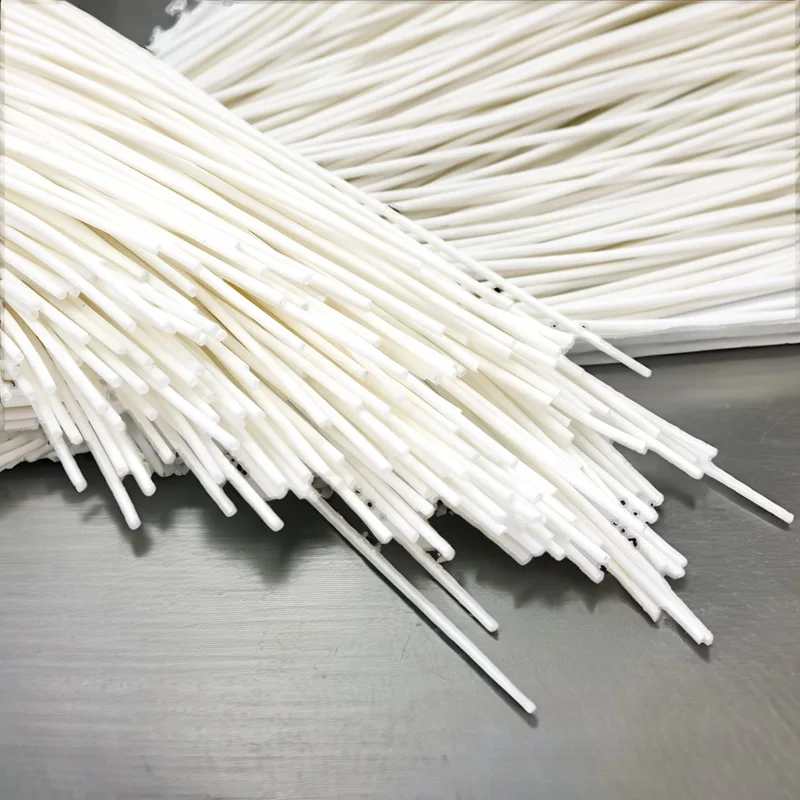

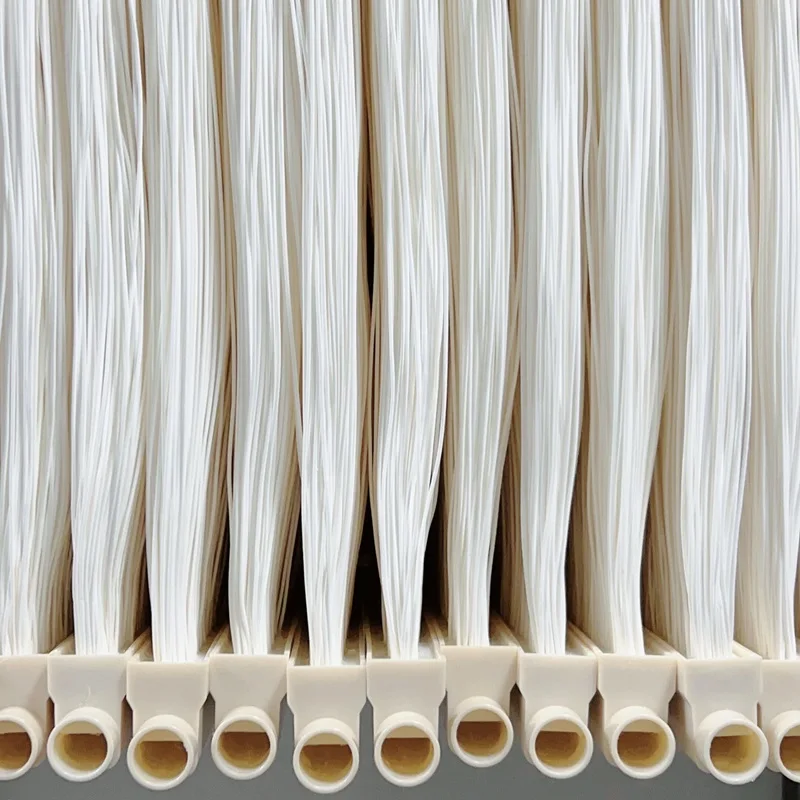

PVDF Curtain Membrane:
JF reinforced PVDF hollow fiber curtain membrane with high membrane filament strength,no peeling and no breakage,four layer sealing technology to eliminate membrane degumming and water leakage.Patented membrane shell design the aeration effect is more reasonable,the pollutants on the surface of membrane filament are easy to fall off.Compared with similar products,the efficiency of aeration is increased by 20%.The design operation flux is increased by 10-20% under the same conditions.Our PVDF curtain membrane has the advantages of more stable operation,lower investment cost,lower operation cost.

JF-MBR Separate Curtain Membrane Characteristics: 1.Large Flux Design flux is 10-30LMH 2.High Strong Anti-Pollution Antimicrobial PVDF hydrophilic alloy,membrane pore is uniform distribution,the ability of anti-pollution is stronger 3.Good Universality The size of installation same as the public version of membrane shell on the market 4.Good Seal Four-layer sealing technology,membrane adopts four times glues technology in sealing package to eliminate water leakage of membrane shell 5.High Integral Strength Internal dehulling structure,the overall strength of membrane is higher than the general membrane products on the market 6.Easy maintenance Socket structure design,off-line cleaning,more convenient maintenance

Tag:

polyethersulfone PES membrane,

Wastewater Treatment Membrane,

PES Hollow Fiber Membrane
